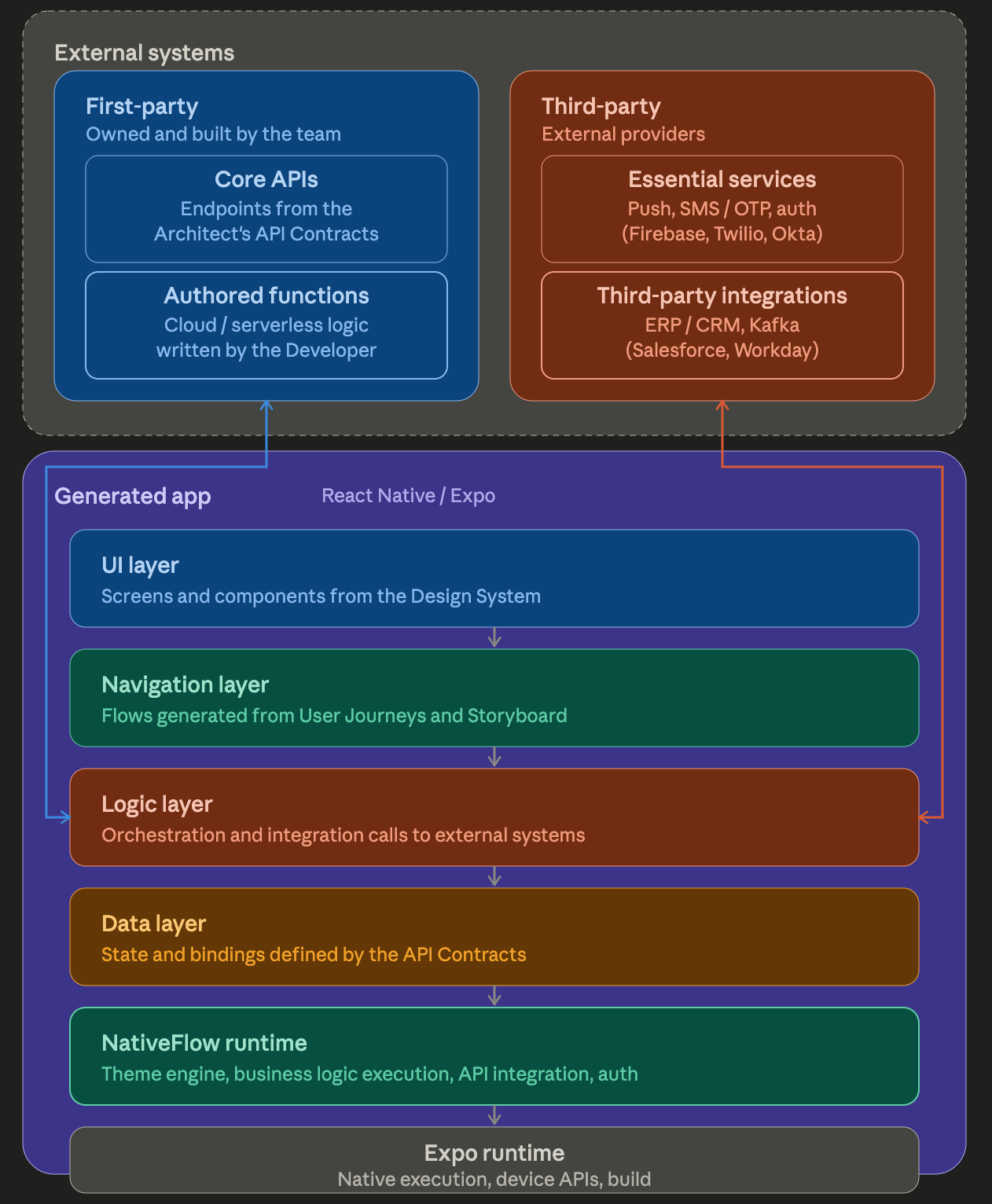

Every app NativeFlow Studio produces is a React Native application built on Expo. The architecture has four layers, each tracing back to a specific Foundation artifact reviewed and approved in the Studio:
  • UI layer: screens and components rendered from the Design System.
  • Navigation layer: screen flows generated from the User Journeys and Storyboard.
  • Logic layer: orchestration and integration calls to external systems, based on the Developer’s API Orchestration and Function definitions.
  • Data layer: state and bindings defined by the Architect’s API Contracts.
These layers run on the NativeFlow runtime, which handles the theme engine, business logic execution, API integration, and authentication. The NativeFlow runtime in turn runs on the React Native runtime, which handles native execution and device APIs using Expo tooling. The Logic layer connects outward to two categories of external systems:
  • First-party: Core APIs (from the Architect’s API Contracts) and Authored Functions (cloud or serverless logic written by the Developer).
  • Third-party: Essential Services (push, SMS/OTP, authentication providers like Firebase, Twilio, Okta) and Third-Party Integrations (ERP/CRM systems like Salesforce and Workday, messaging systems like Kafka).
