This is the fastest route from nothing to something you can edit. You will create a project, then let the AI Assistant generate a first screen from one plain English sentence, and confirm that what it produced is made of real components rather than a picture of a screen.Studio’s core building pattern is not dragging components onto a blank canvas one at a time. It is describing the screen you want, then refining what comes back. This page is that pattern’s on ramp.
Go to https://getnativeflow.com/projects. This is where every signed in user lands.Each project the account owns shows as a card with a thumbnail, name, screen count and last edited time. A + New Project button sits at the top right.

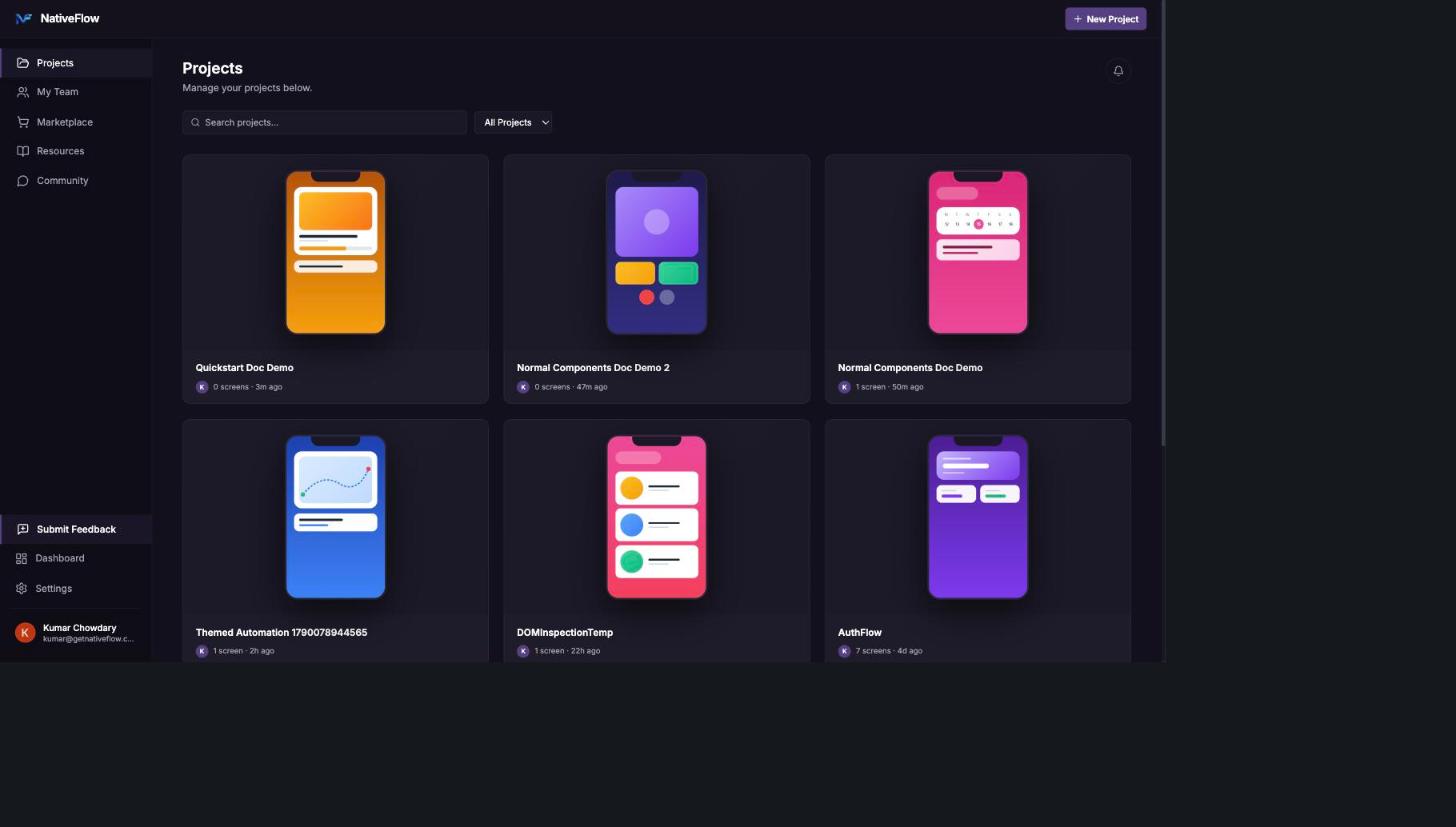

The Projects dashboard with existing project cards and the + New Project button at the top right
2
Create the project
Click + New Project. A Create New Project dialog opens.It asks for exactly one thing, a Project Name, with the placeholder text “My Awesome App”. There is no template picker, category or extra setup step. Just a name, a Cancel button, and a Create button that stays disabled until the name field has content.

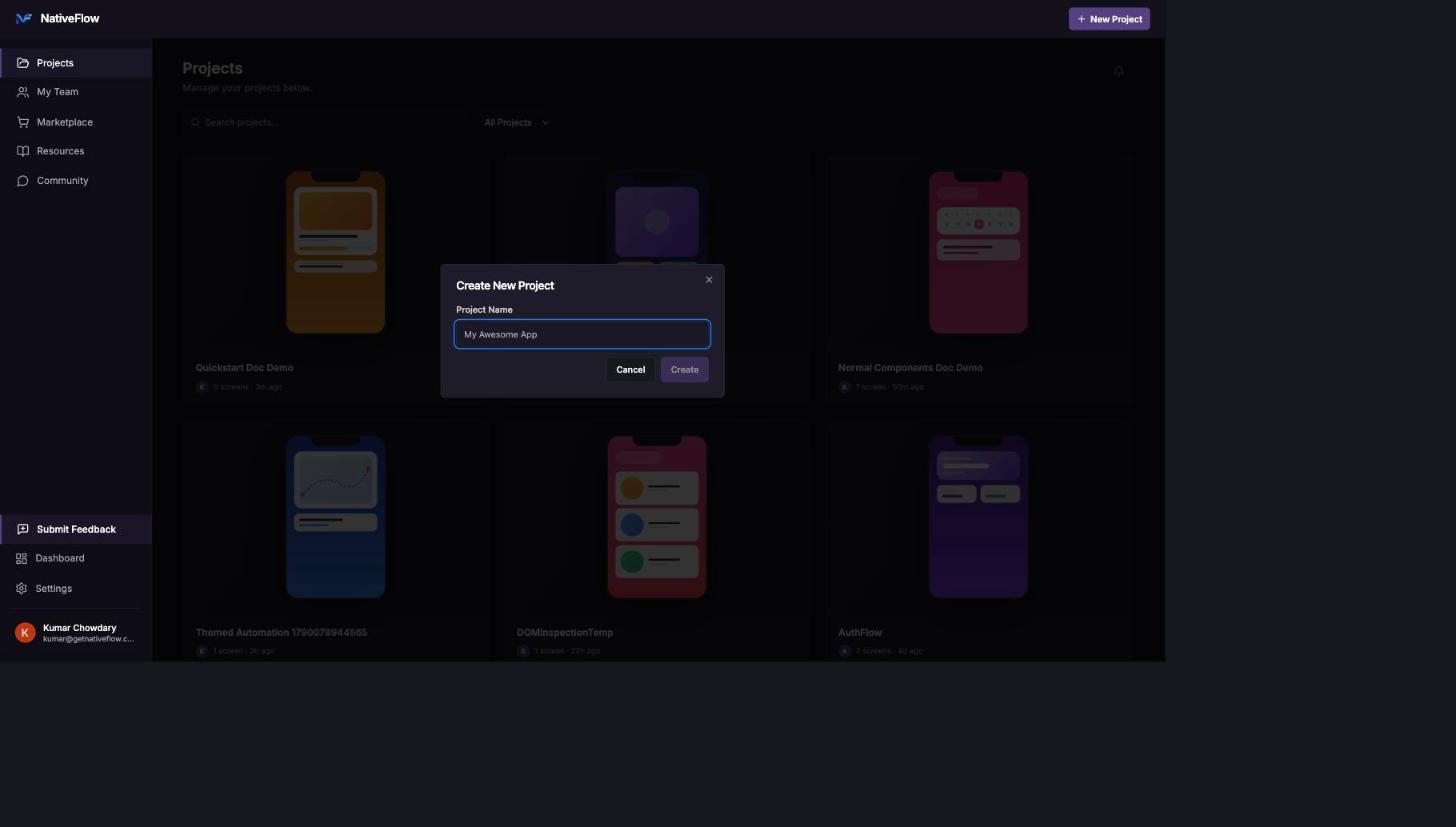

The Create New Project dialog: a single Project Name field with the placeholder My Awesome App, plus Cancel and Create buttons
Wait about a second after typing the name before you click Create.Clicking Create immediately after typing did not work reliably in live testing. The dialog just sat there with no visible error. The button looks clickable straight away, but a name validation check has not resolved internally yet. If nothing happens, wait a moment and click Create again.
3
Land in the editor on an empty page
Create takes you straight into the project’s main editor, the same five region layout covered in the Studio Interface Tour.A brand new project starts with one page called “Page 1”, empty, and the AI Assistant panel open on the left by default.

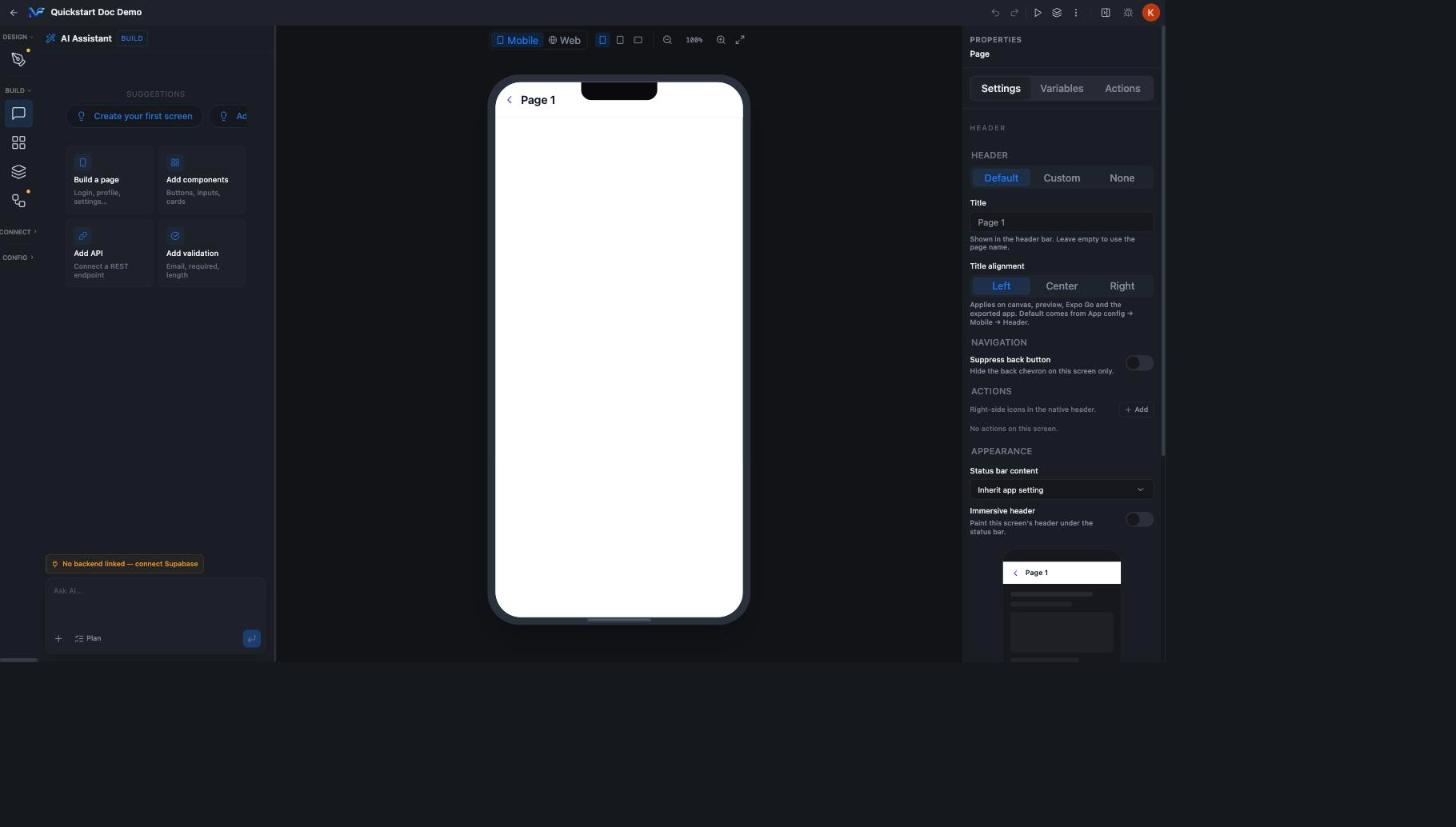

A new project's landing state: empty Page 1 on the canvas, the AI Assistant panel open with suggestion cards, a Create your first screen prompt above them, and an orange No backend linked banner
Two things are worth noticing here:
A “Create your first screen” callout sits above the usual suggestion cards. It is new project specific framing that nudges you toward the AI Assistant rather than the component catalog.
The four suggestion cards, Build a page, Add components, Add API and Add validation, plus the Ask AI… input, are the same ones the interface tour documents. Here they are the only thing to do, because the canvas is empty.
4
Prompt the AI Assistant
This is the core action. Click into the Ask AI… box and type a plain English description of the screen you want.The prompt used for this walkthrough:
Build a simple profile screen with an avatar, name, bio text, and an Edit Profile button
The prompt typed into the Ask AI input box, not yet submitted
Submit with the send button or Enter. The chat log immediately shows a “Thinking…” status with a running seconds counter.

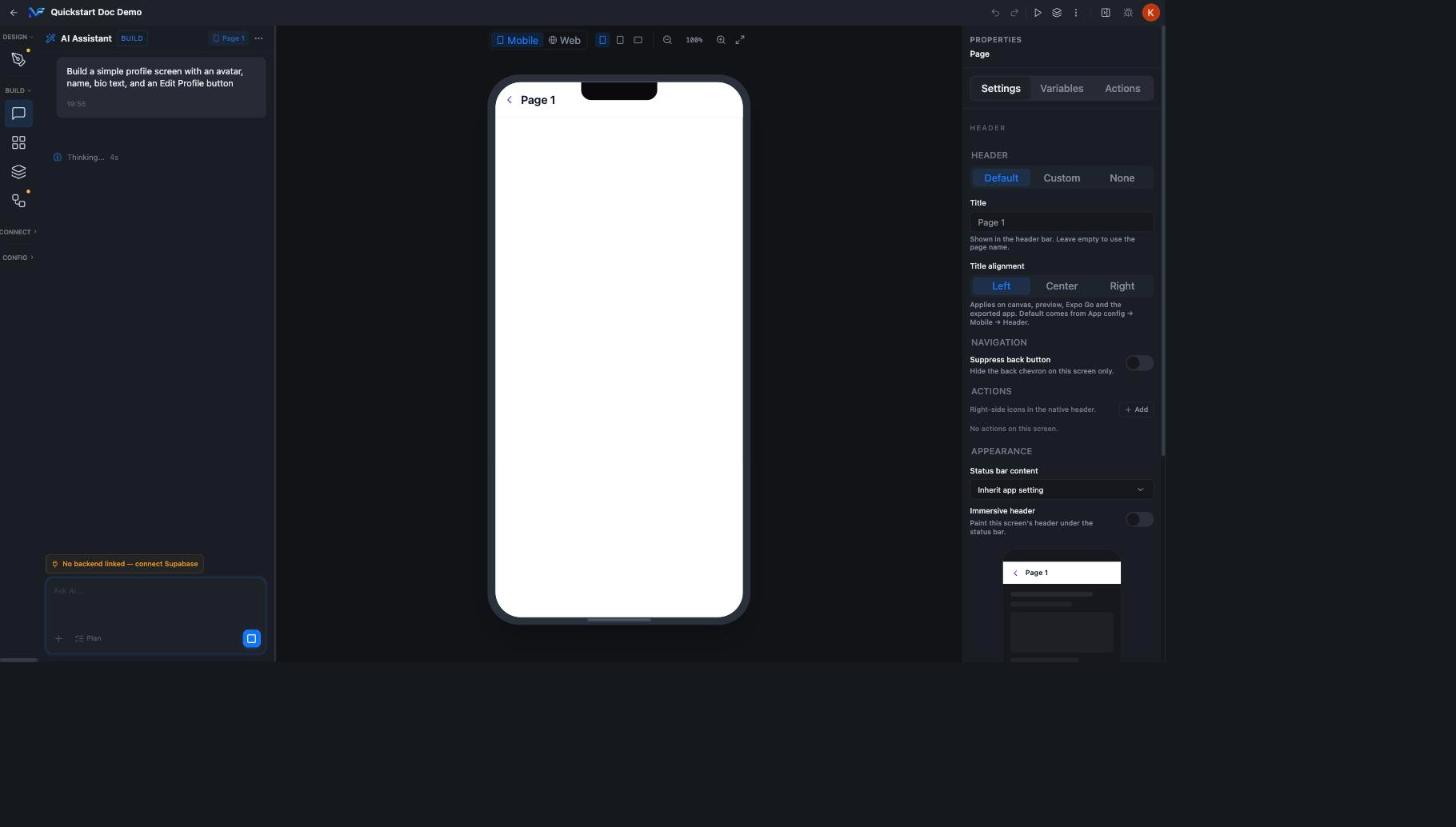

The AI Assistant chat showing Thinking... 4s immediately after the prompt was submitted
Generation took roughly 15 seconds from submit to a fully rendered result. Real components appeared on the canvas well before the chat’s own explanatory reply had finished rendering, so watch the canvas, not the chat.
5
Read the result
The AI Assistant did not just produce a description. It built and placed real, selectable components on the canvas: a circular avatar image, a name heading with the placeholder value “Sarah Chen”, a bio paragraph, and a solid Edit Profile button, all centred and using the project’s default theme colours.

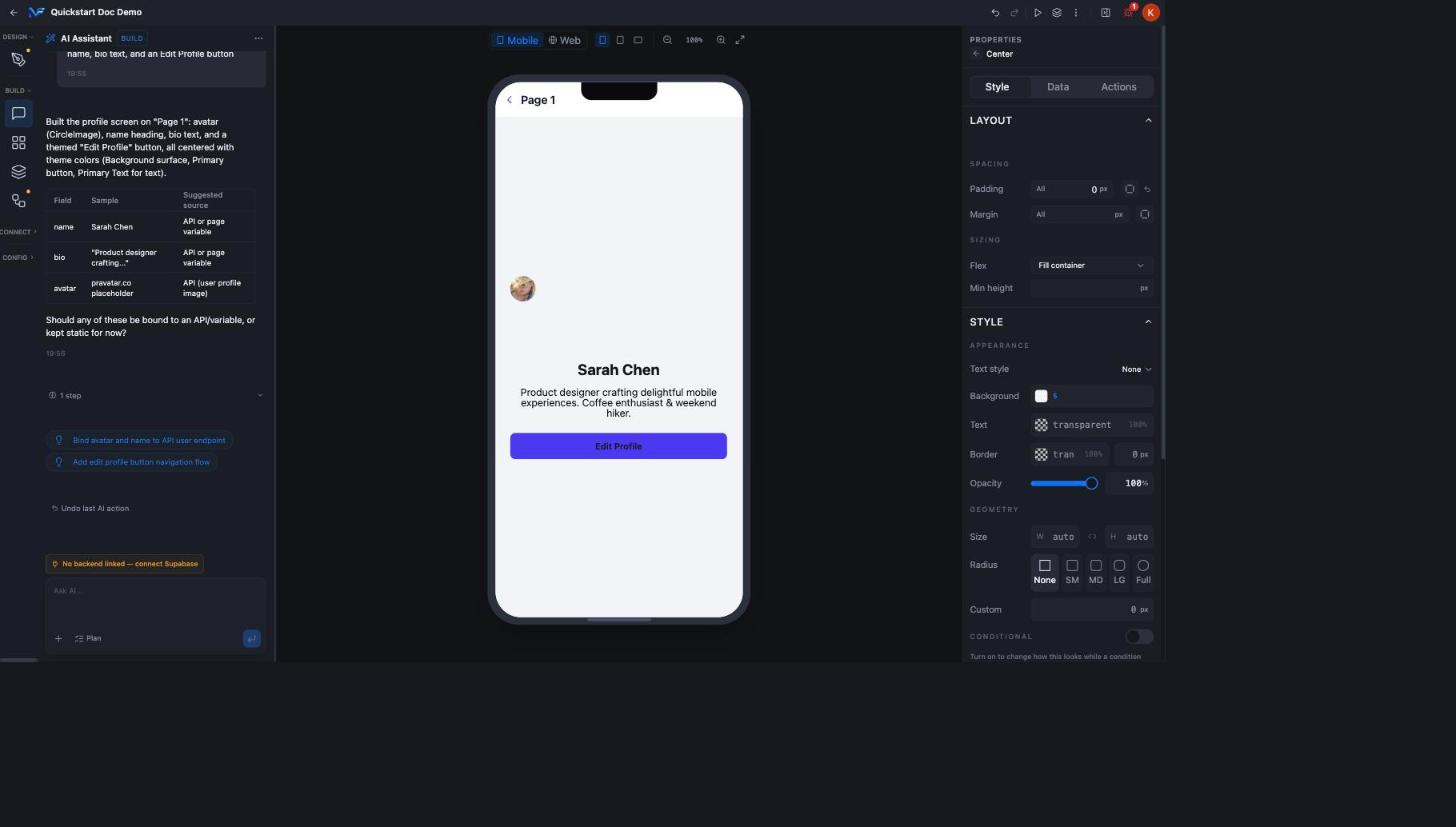

The generated profile screen on the canvas, avatar, name, bio text and an Edit Profile button, beside the AI Assistant's chat reply describing what it built
The reply is specific about what it did. It named the exact components used, “avatar (CircleImage), name heading, bio text, and a themed ‘Edit Profile’ button”, and the theme tokens it applied, “Background surface, Primary button, Primary Text for text”.Because no backend is connected yet, it also listed the placeholder values it invented, the name “Sarah Chen”, the bio “Product designer crafting…”, and a pravatar.co avatar image, each with a suggested source of “API or page variable”. Then it asked directly: “Should any of these be bound to an API/variable, or kept static for now?”Below that it offered two follow up actions as clickable chips, “Bind avatar and name to API user endpoint” and “Add edit profile button navigation flow”, plus an “Undo last AI action” control.
6
Confirm it is real, not a mockup
Click the stacked layers icon in the left rail to switch that panel to the Component Tree. You will see the node structure the AI Assistant actually created:
Page → Box → Center → Column → Circle Image, Heading, Text, Button
The Component Tree showing the generated structure: Page, Box, Center, Column, with Circle Image, Heading, Text and Button as children
Every one of those is a real, independently selectable component. Click the Button and its own fields load into the Properties panel on the right, exactly as they would for a component you added by hand: Text “Edit Profile”, Text Align Center, Variant Solid, Action Primary, Size MD.

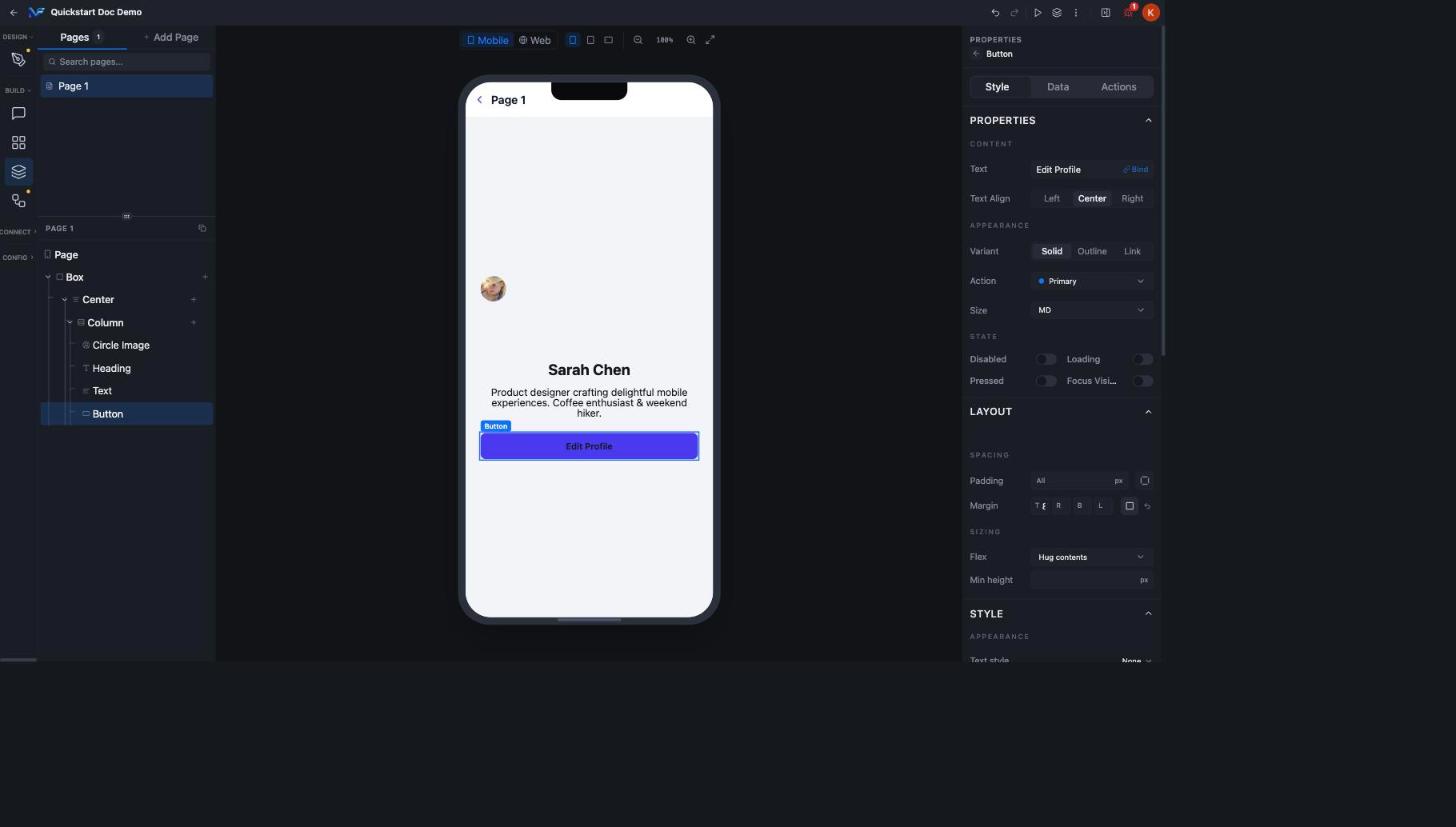

The generated Button selected, with the Properties panel showing editable fields: Text Edit Profile, Text Align Center, Variant Solid, Action Primary, Size MD
A freshly created project does not reliably save. This is a known Studio bug, confirmed live during this walkthrough. After the profile screen was generated, the Projects dashboard card for the same project still read “0 screens”.Keep working in the same browser tab and session. Reloading or reopening a brand new project is exactly the action observed to lose changes that render correctly in the editor. Treat this as a product issue, not something you did wrong.
From here the loop is the same one the rest of the docs cover:
Select any generated component and configure it through the Properties panel tabs, Style, Data and Actions.
Send another prompt to the AI Assistant, either one of its own suggested follow ups such as binding the avatar and name to an API, or a fresh request. Generating and then refining is the same pattern every time.
Undo covers both AI changes and hand edits, so you can experiment freely.
If clicking a row in the Component Tree opens a Delete confirmation instead of selecting the component, you hit the hover revealed delete icon rather than the row. Click Cancel, then click again closer to the row’s label text than its edge.
