Once a component is on the canvas with its basic properties set, three deeper controls shape how it behaves in different situations:
Reparenting: drag a row in the Component Tree to move a component to a different parent or position.
Conditional styling: give one component a second look that applies while a condition holds, such as a selected row or an active chip.
Visibility controls: three independent ways to show or hide a component, by platform, by a rule, or by screen size.
By the end of this guide you will have moved a component to a new parent, configured a conditional style inside a List row, and hidden a component on one platform and one breakpoint.Prerequisites
A NativeFlow Studio project, open and loaded, with at least one component on a page.
For conditional styling, a List component on the page. The toggle exists everywhere but only becomes a real condition builder inside a List’s repeated row template.
For Conditional Visibility, at least one Input or other bindable component on the page, because the Source Field dropdown only lists fields that already exist there.
No backend or auth connection is needed for anything here.
Reparenting happens in the Component Tree in the left panel. The other three controls sit in the Style tab of the Properties panel, below the universal Style and Layout sections: a CONDITIONAL toggle, then three collapsible sections named PLATFORM VISIBILITY, CONDITIONAL VISIBILITY and RESPONSIVE VISIBILITY.
A real sibling-reorder drag in the Component Tree, the already-configured Conditional style on a List row, and the Platform/Responsive/Conditional Visibility toggles.
The recording above is a real, unscripted session — it runs at automation speed with no narration. Every toggle it flips is flipped back by the end.
In the verified example the Sign Up page’s tree read Column > Heading, Form > FormControl 1 > Input 1, FormControl 2 > Input 2, Button. The Create Account Button was the last child of the Form, after both fields.

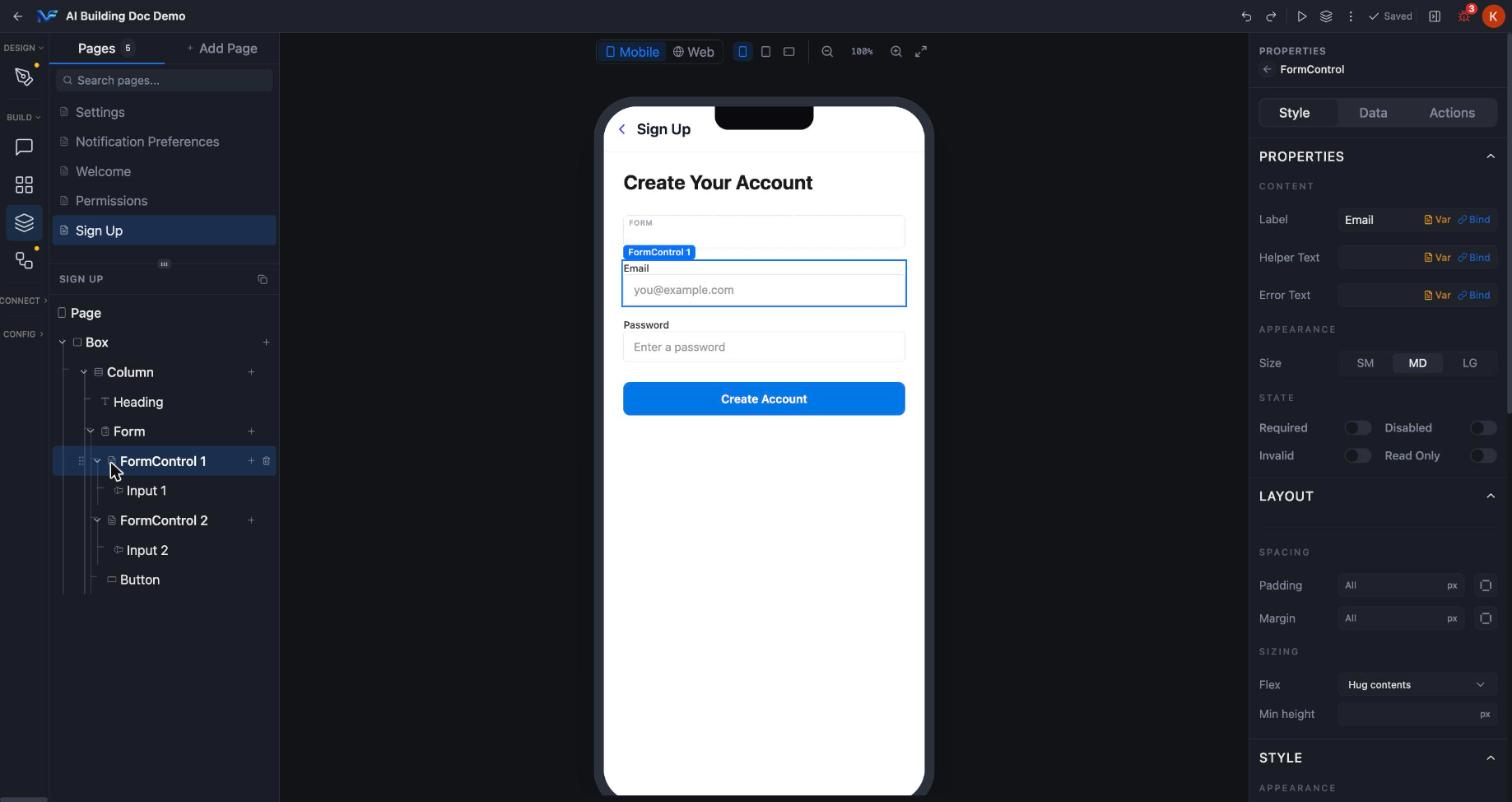

The Component Tree before the move, with Button as the last child of Form, after FormControl 1 and FormControl 2
2
Drag the row and watch for the insertion line
Drag the row by its handle. A green horizontal insertion line appears between rows to show exactly where the component will land. That line is the reliable signal that the drop will register.
dragging the Button row upward, with a green insertion line appearing between Heading and Form
Each tree row is a native HTML5 drag source, not a pointer based drag. If a drag seems to do nothing, start from the row’s own drag handle and move slowly enough that the green insertion line appears before you release.
3
Release to drop it
Releasing on that line moved the Button out of the Form entirely and made it a direct child of Column, between Heading and Form. The canvas updated immediately, rendering Create Account under the heading and above the Email and Password fields, and the header’s autosave indicator went from “Saving…” to “Saved”.
The Component Tree after the move, with Button now a direct child of Column, and the canvas showing Create Account above the Email and Password fields
The same drag reorders siblings, not just reparents across containers. Dragging the Password field above the Email field swapped their order on the canvas straight away.
The CONDITIONAL toggle only becomes a real condition builder on a component inside a List’s repeated row template.Anywhere else it just explains the prerequisite. Before you turn it on, the helper text reads “Turn on to change how this looks while a condition holds, a selected row, an active chip.” Turn it on outside a List and that message is simply replaced by “Put this component inside a List to compare against the row it repeats.” No condition builder appears.
1
Select a component inside a List row template
Add a List from the Data Display category, then select a node inside the row it repeats. In the verified example, the List’s default preview data rendered three rows built from a Row > Box (icon) + Column > Text, Text template, and the selected node was the Text holding the name.
2
Build the condition
Turning on CONDITIONAL there reveals a three part condition:
A Row field, a free text field naming a value on the repeating row’s own data. You type it. There is no picker.
An operator, either is or is not.
A Page variable dropdown listing the page’s own Page Variables to compare against.
3
Set the alternate style
Below the condition, set the Background, Text, Border and Outline to apply while the condition holds.These accept theme colour tokens, not only literal hex values. Setting Text to $Primary from the colour picker’s Theme Tokens section confirmed the override can reference the design system.

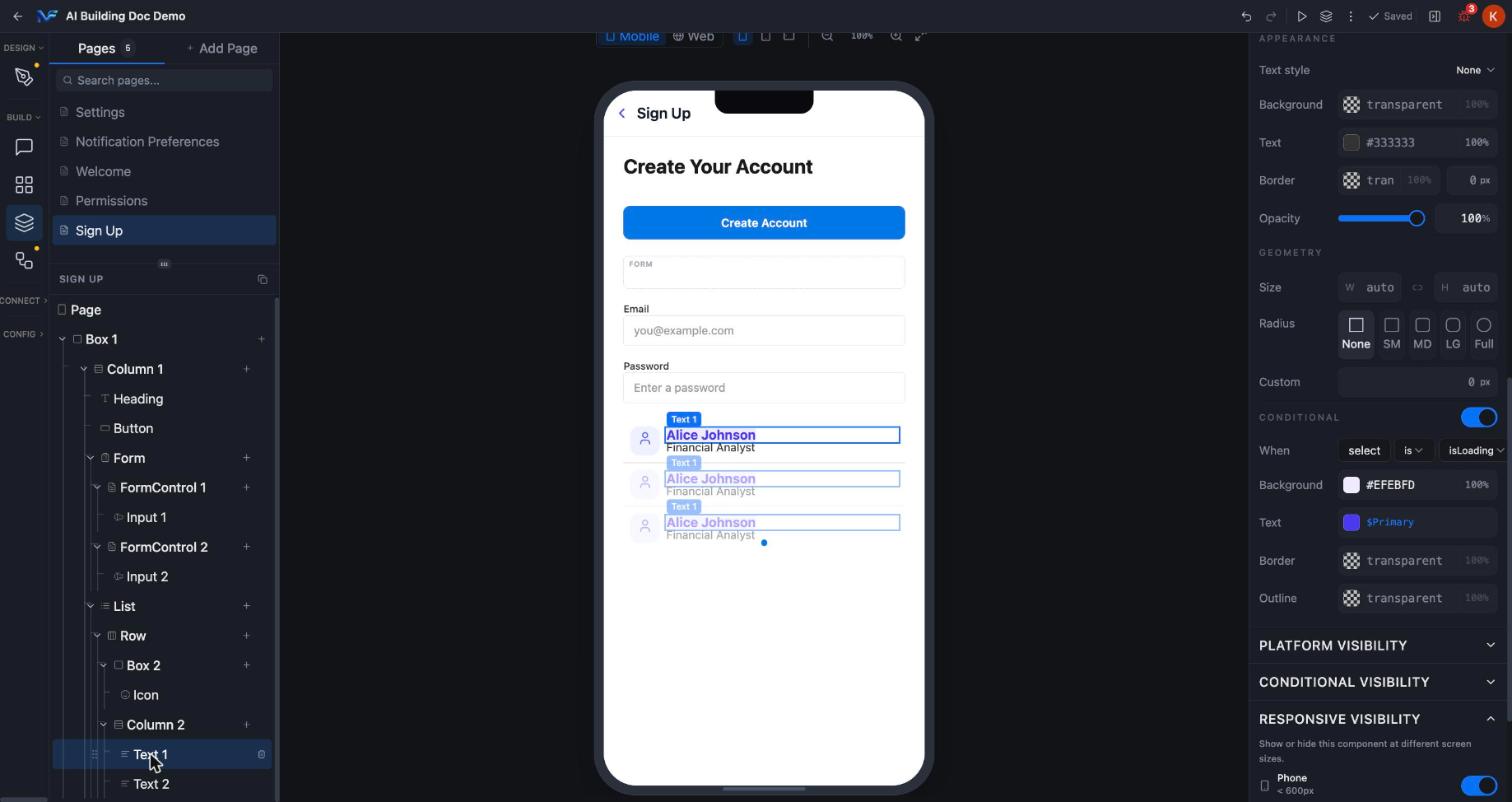

A conditional style configured on a List row's Text node: the When row, then Background, Text, Border and Outline overrides
The canvas renders this live and per row. In the verified example the first row’s name appeared bold and purple while the other two rows kept their default style, which proves the condition is evaluated independently for each repeated row rather than once for the whole list.
The canvas result: the first list row's name renders in the override style while the other two rows render normally
Two toggles, Web and Mobile. There is no separate iOS and Android split.Helper text: “Hidden components are removed from that platform’s layout, which reflows around them. Data bindings stay attached.”

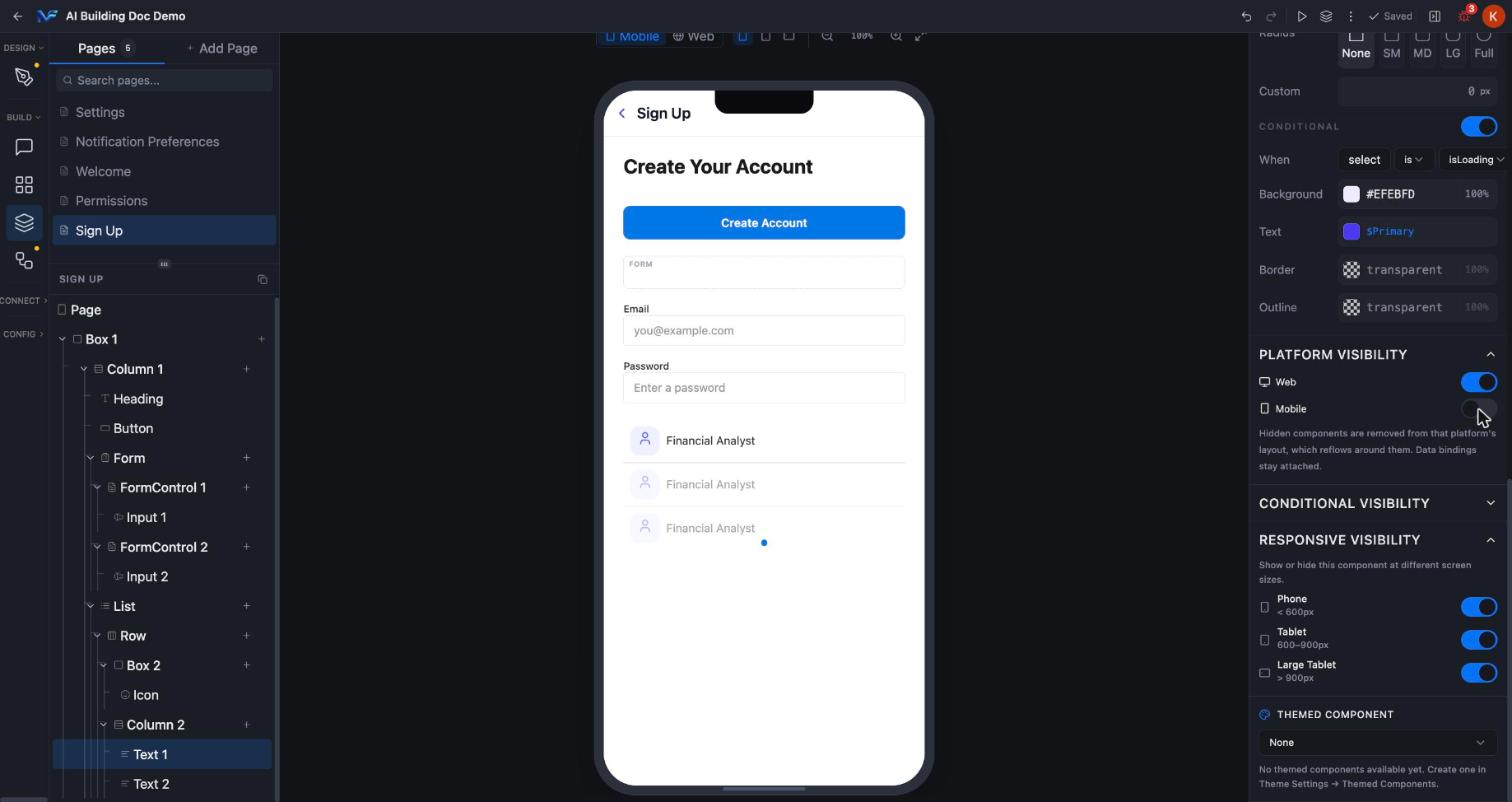

turning the Mobile toggle off in the Platform Visibility section and the component disappearing from the Mobile canvas
Turning Mobile off with the canvas in Mobile preview mode removed the text from the canvas entirely, not just dimmed it, and the row collapsed around it. Switching the canvas to Web preview mode showed the text again, with an orange Hidden on mobile badge on each affected element.

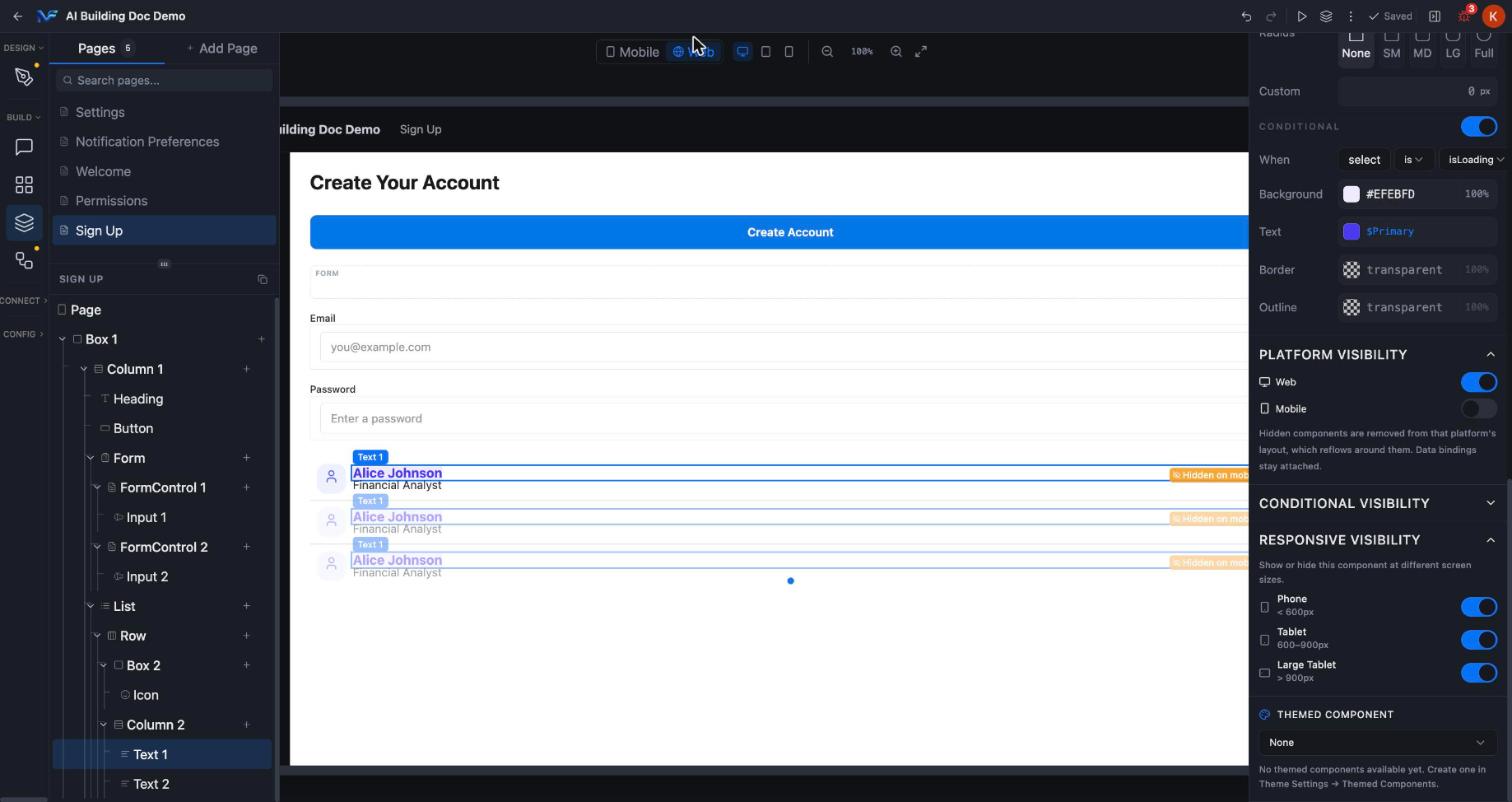

The canvas in Web preview mode, showing the text again with an orange Hidden on mobile badge on each row
Helper text: “Show or hide this component at different screen sizes.”

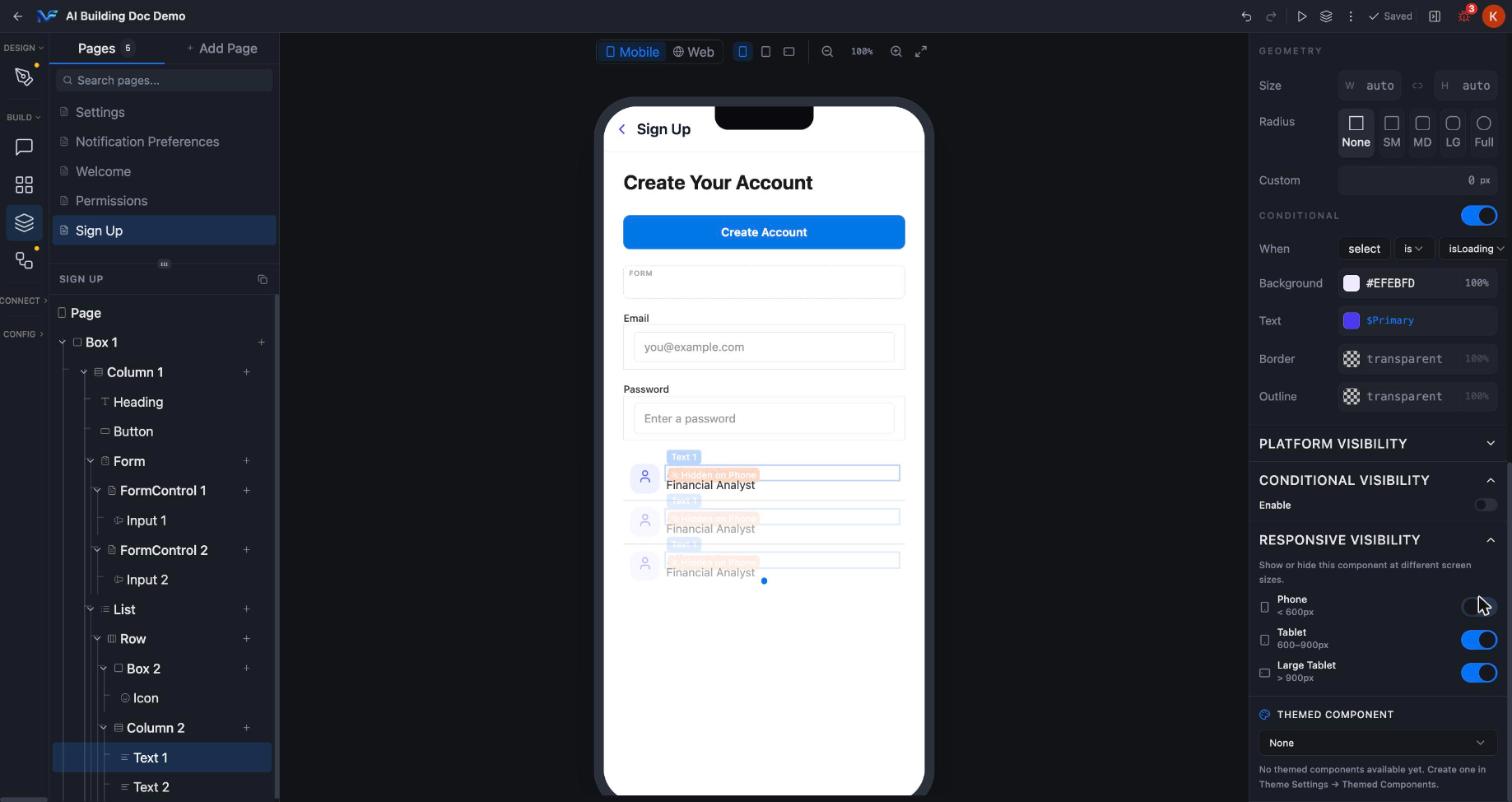

turning the Phone toggle off in Responsive Visibility, with the component disappearing and an orange Hidden on Phone badge appearing
Turning Phone off with the canvas at phone width hid the text and showed an orange Hidden on Phone badge, the same live feedback pattern as Platform Visibility.
If a Platform or Responsive toggle seems to have no effect, the canvas’s own device and platform preview mode does not match what you turned off. Switch the canvas to that platform or width. The effect and the badge only show for the mode you are currently viewing.
This one hides or shows the whole component based on a rule, and it does not require a List. It has three fields:
Source Field: a dropdown of other bindable fields already on the page. On a sign up page it listed the Input placeholders as labels, you@example.com and Enter a password, so it points at another component’s current value rather than at a Page Variable.
Condition: seven operators, Equals, Not Equals, Is Empty, Is Not Empty, Contains, Greater Than and Less Than.

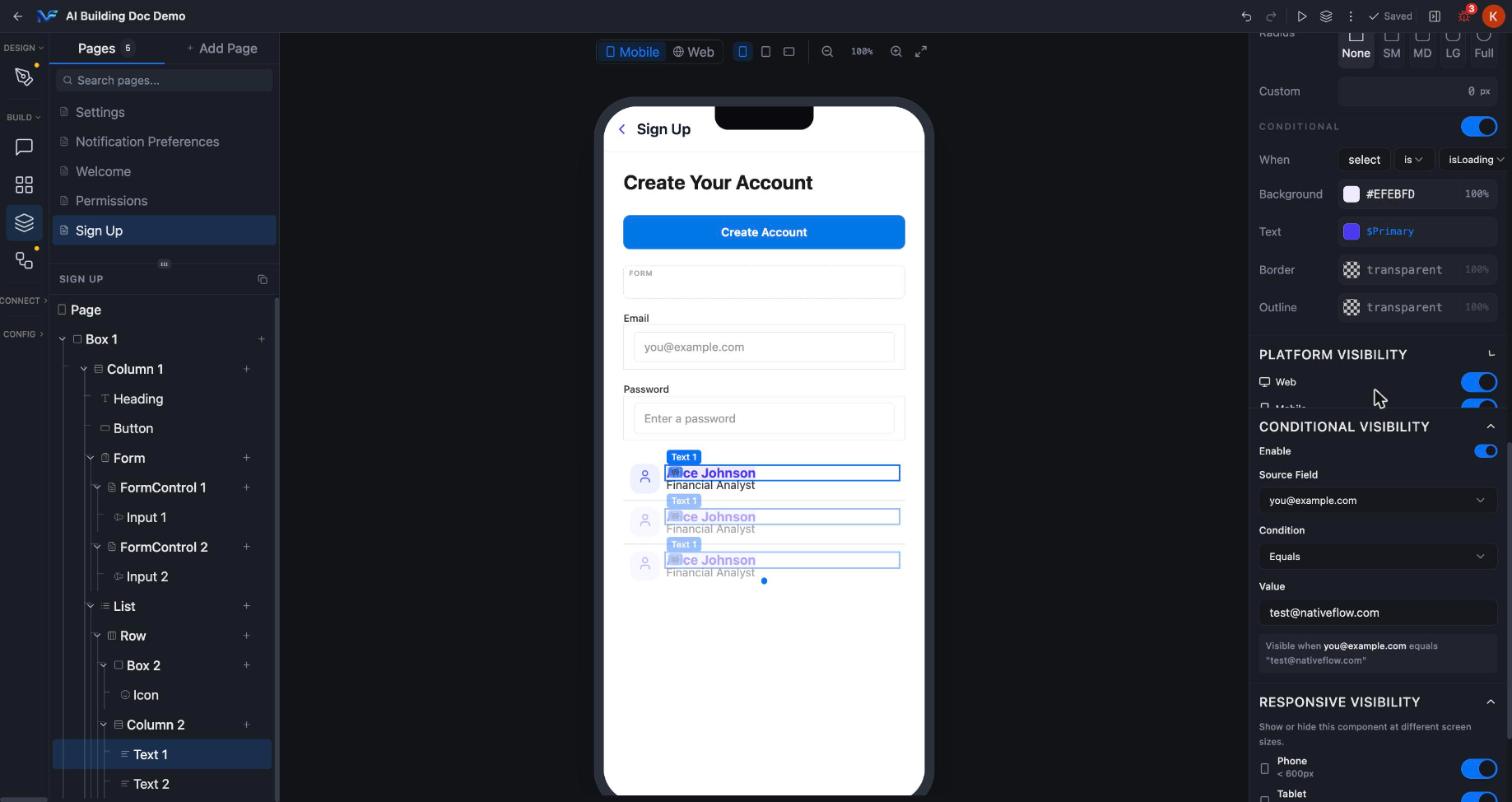

Conditional Visibility fully configured with a Source Field, a Condition of Equals, a Value, and the live summary sentence below
Conditional Visibility is not enforced in the canvas editor. It applies only in Preview and in the exported app.With a rule configured and clearly unmet, the target component still rendered normally on the canvas and stayed selectable. Platform and Responsive Visibility behave differently and are enforced live on the canvas for whichever device and platform mode is active. Check a Conditional Visibility rule in Preview or the exported app, never on the canvas.
If the Source Field dropdown is empty, there are no other bindable fields on the page yet. Add an Input or another bindable component first.
