Overview
Theme Settings is the project wide design system. Colours, text styles and app shell behaviour are defined in one place, and every screen in the project reads from there instead of each component carrying its own hard coded values. Without it, a purple button is purple because someone typed#4B39EF into that one button. With it, the button is $Primary, and changing $Primary once changes every component bound to it, on the canvas and in the exported app. The same idea applies to text, where you pick a “Body Medium” style rather than “14px Roboto normal”, and to the app shell, where you configure one header rather than one per screen.
In the left sidebar, expand CONFIG and click the palette icon, whose tooltip reads Theme Settings. The pane that opens is headed Runtime Theme, subtitled “Drives the canvas and the exported app. Separate from the agent-authored Foundation → Design System spec.” The sidebar entry and the pane header are two names for the same place, and neither is the separate Foundation → Design System document, which is an AI written plan rather than an editor.

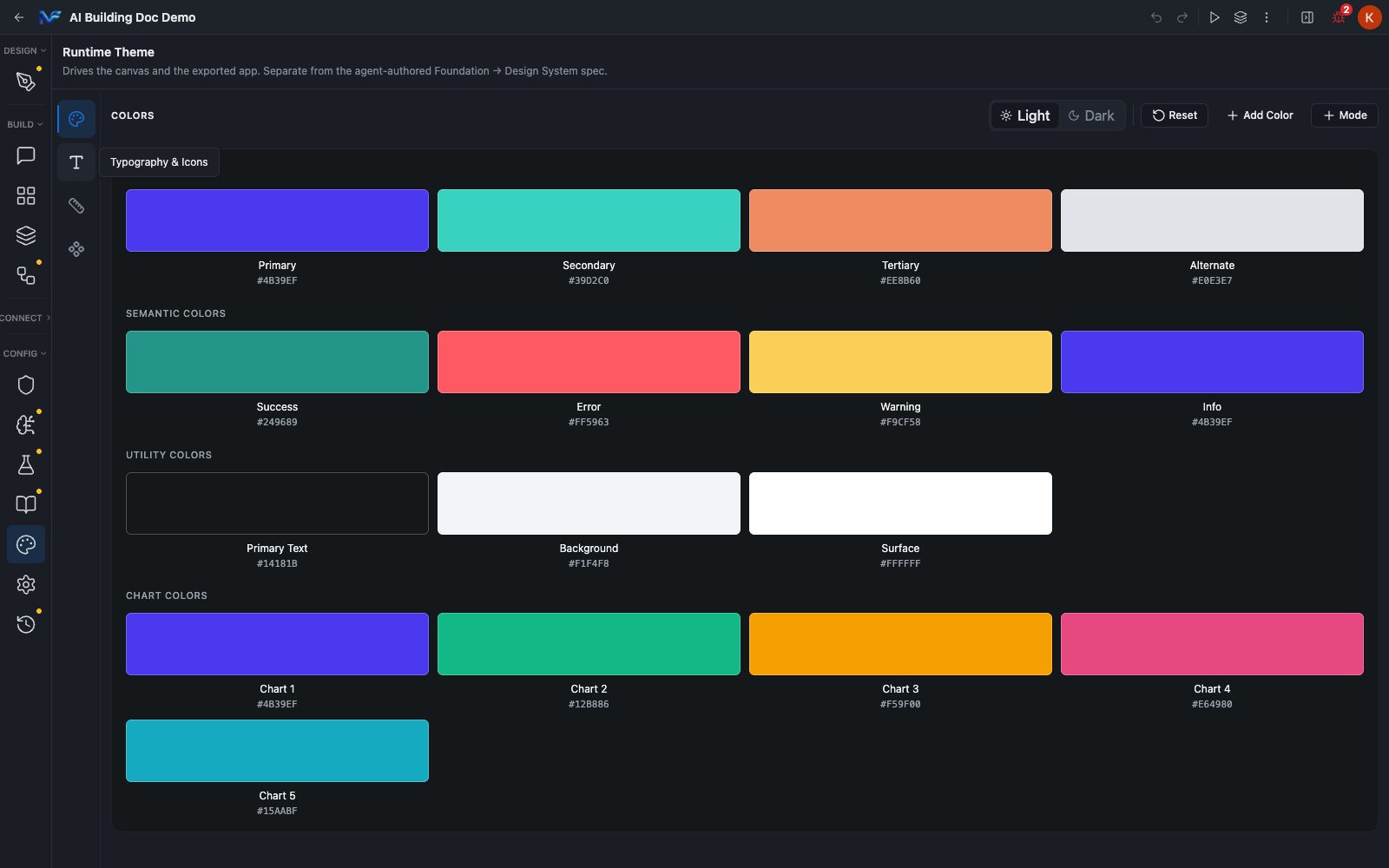

The Runtime Theme pane with the Colors sub-section open and the four icon rail on the left, one tooltip showing
Themed Components
The fourth rail icon is where these tokens get consumed. It has its own page.
Editing the Primary color token to orange and back on camera, then reading the Typography table and all three App Config tabs.
#4B39EF to #E8590C and back to #4B39EF in the same dialog session, and confirmed back at #4B39EF on a fresh reload afterward. No stepper or edit control is touched in Typography or App Config — those two sub-sections are only read on camera.
Colours
Colors opens by default. Tokens are grouped into four sets.
That is 16 tokens on a project created from Studio’s defaults.
The Colors sub-section: four labelled groups of swatches, each with a name and hex value, plus the Light/Dark toggle, Reset, Add Color and Mode buttons in the header
Editing a token
Each swatch is one clickable card. The colour block, the name and the hex are all a single button. Clicking it opens the Choose a Color dialog, which gives you a saturation and brightness square, a hue slider, an alpha slider, a hex field you can type into, R/G/B/A number fields, and a Recent Colors row once you have picked colours in the session.

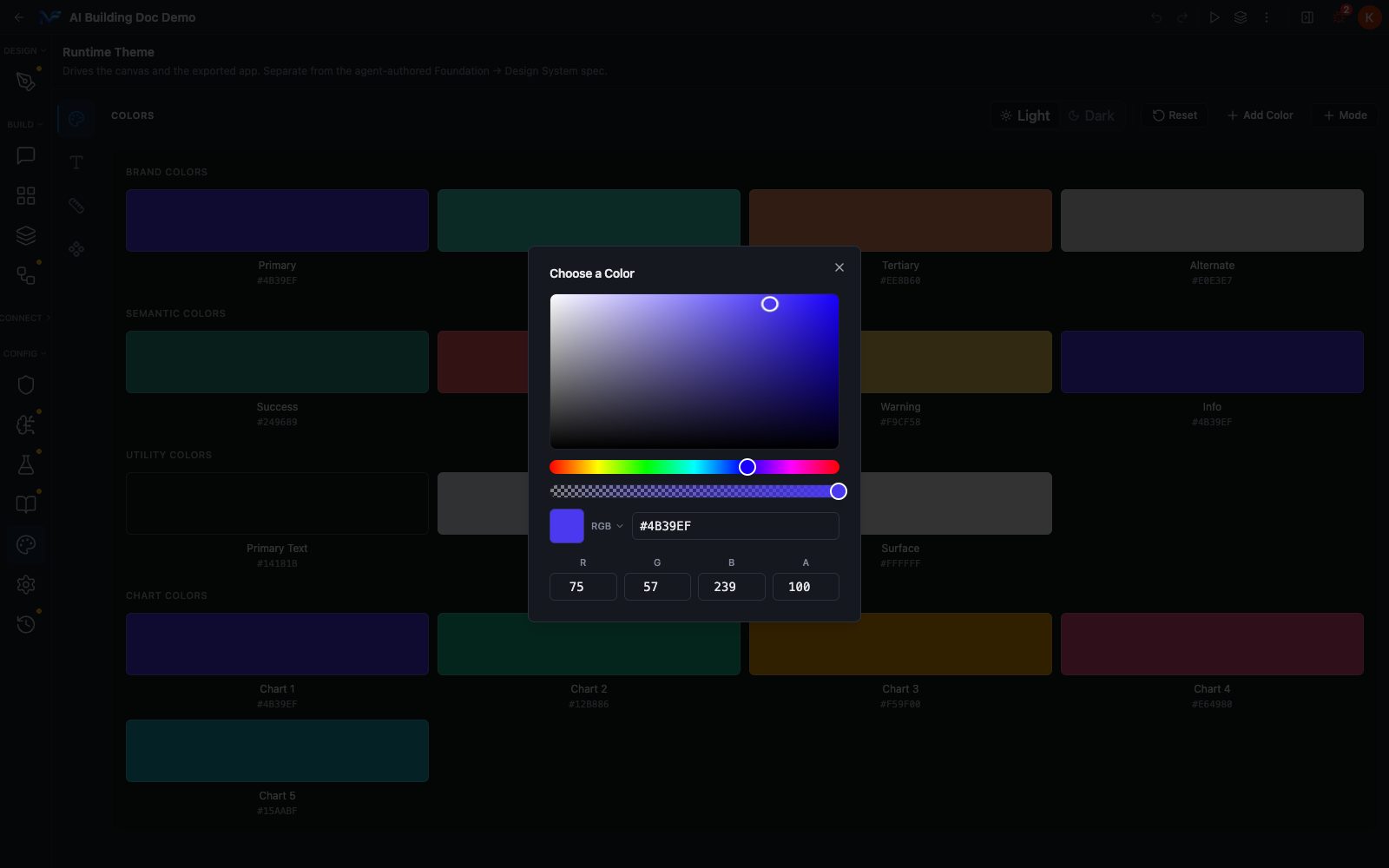

The Choose a Color dialog open on the Primary token, showing the picker canvas, hue and alpha sliders, the hex field and the RGBA fields
#E8590C and going straight back to a page showed the change already applied, with no reload. On a page whose list rows are bound to $Primary, all three rows turned orange.
Primary edited to an orange hex, then the canvas showing the token bound list rows already rendering orange
Only components bound to a token follow a token edit. A component holding a literal hex will not change.In the verified example, the blue “Create Account” button on the same page did not move when Primary changed, because it carries a literal colour rather than
$Primary. If a token edit appears to do nothing, check the component’s colour property first.Light and Dark
Every token holds a separate value per mode, so the same 16 names carry a different set of values under Dark.The Light/Dark toggle scopes editing, not preview. Selecting Dark shows you the Dark values so you can edit them. It does not switch the canvas.This was checked directly. With Dark selected, switching back to a page showed the canvas rendering the Light values still: same white background, same purple text. Nothing is broken when that happens.
The canvas while Dark is selected in the Colors tab: rendering is unchanged, still a light background and purple text
The three header buttons
- Reset. Restores the default colours.
- + Add Color. Opens a dialog with a Color name field, a group dropdown offering exactly the four groups above, and a swatch plus hex field.
- + Mode. Opens Add New Mode, a single name field placeholdered “e.g. high-contrast” plus a Create Mode button. So a project is not limited to Light and Dark.

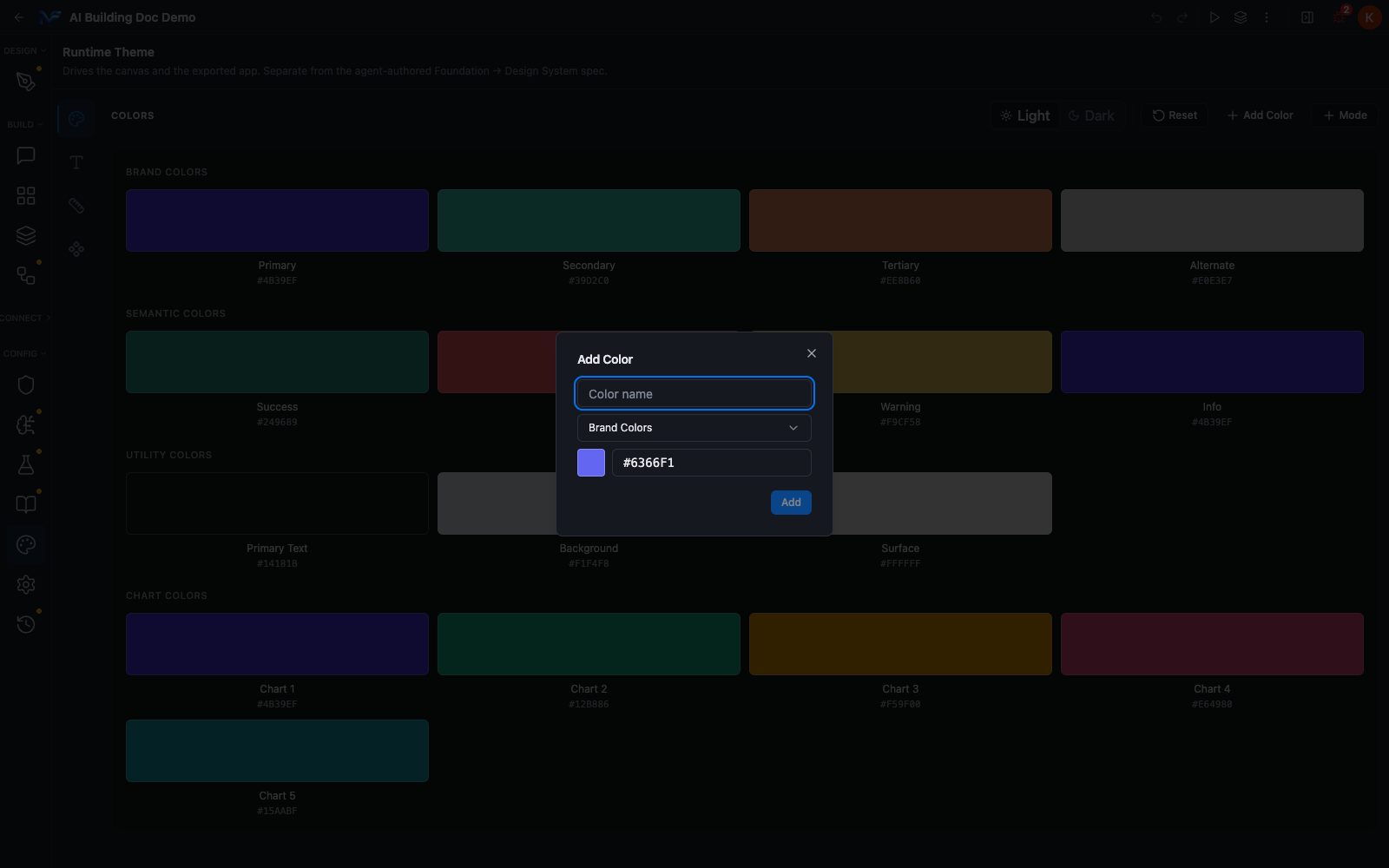

The Add Color dialog: a Color name field, a Brand Colors group dropdown, a swatch with a hex value, and an Add button
Typography
The second rail icon. The pane is headed TYPOGRAPHY and has its own Light/Dark toggle, Reset and + Add Style. Two global font pickers sit above the table, with Studio’s own explanation: “Primary = body & content text. Secondary = headings & display text for visual hierarchy.”

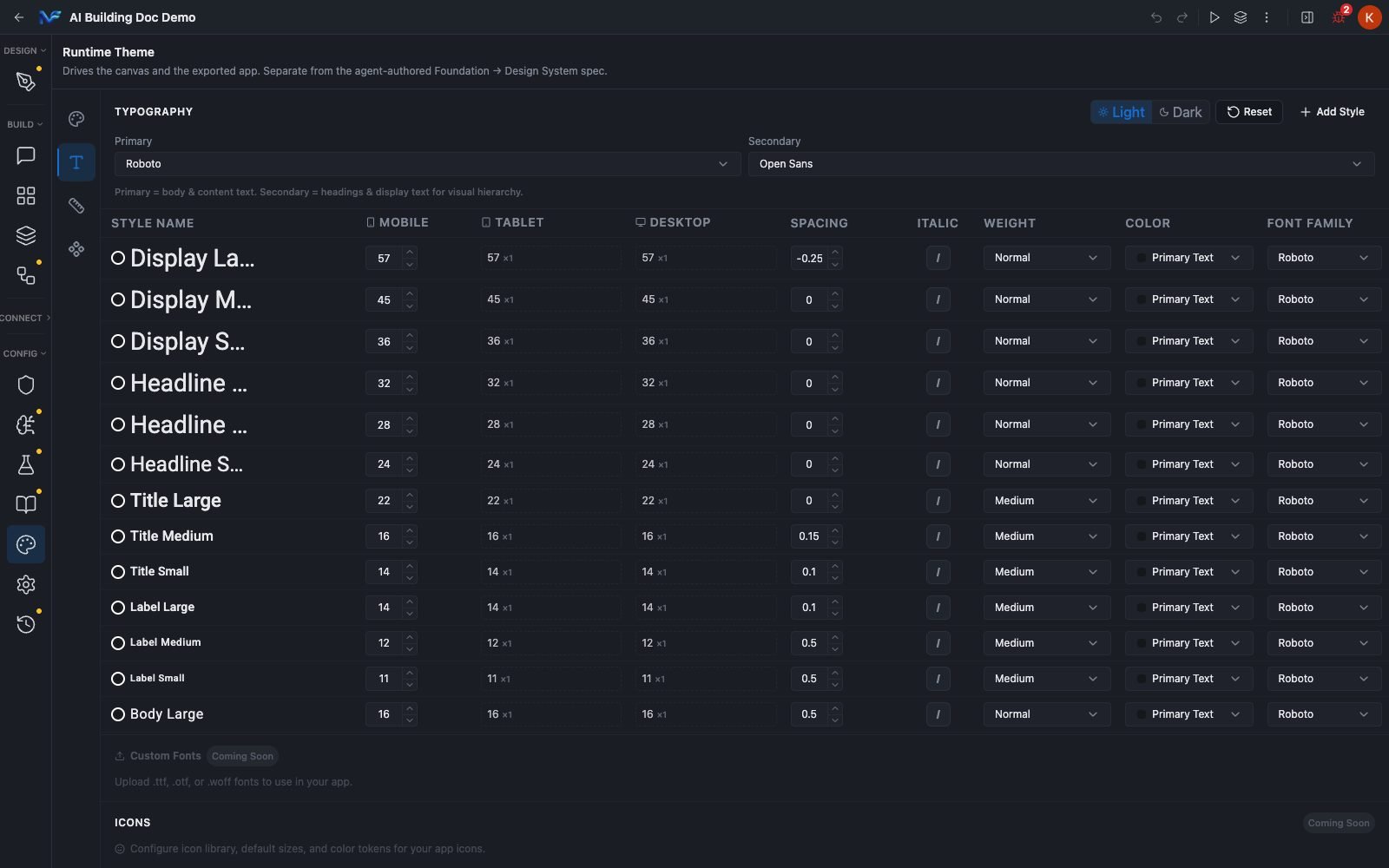

The Typography pane: the Primary and Secondary font pickers above a style table with columns for Mobile, Tablet, Desktop, Spacing, Italic, Weight, Color and Font Family
Driving the Body Large row's Weight dropdown from Normal to Semi Bold and back, then reading its Color and Font Family dropdowns without picking anything.
Normal before the recording ends — confirmed on a fresh reload afterward, not just an in-session check. The Color and Font Family dropdowns are opened to show their options and dismissed with Escape rather than a pick, and no numeric stepper is touched anywhere in the pass.
The table holds 18 named styles in seven families: Display, Headline, Title, Label, Body, Overline and Caption. Each row’s name is rendered in its own style, so the table doubles as a specimen sheet.

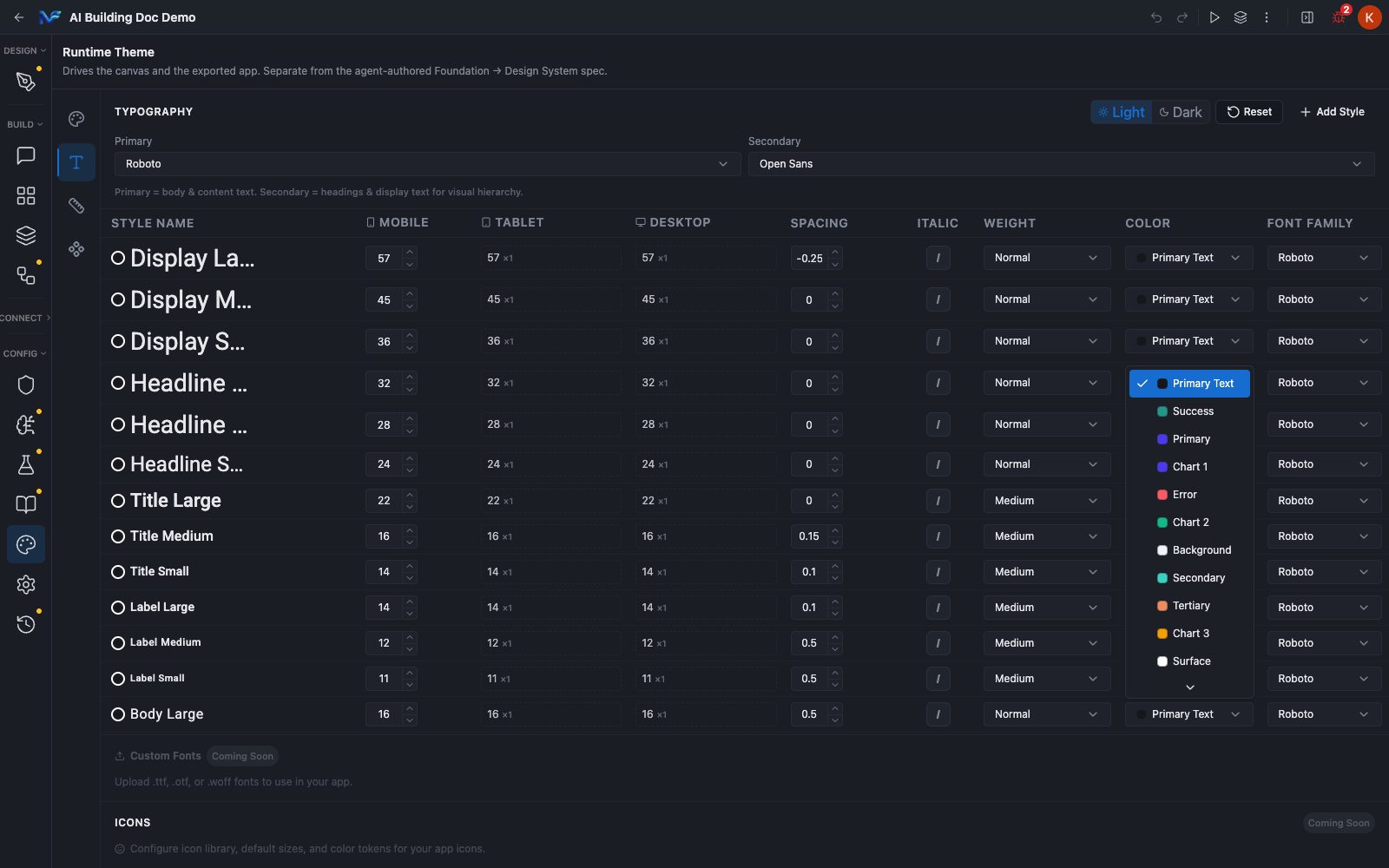

The Color dropdown open on a typography row, listing the project's colour tokens with their swatches
The tier cells are steppers, and clicking the middle of one can land on an arrow and silently change the size by one. During verification a Caption size went from
12 to 11 exactly that way. Check the value after you click a cell.App Config
The third rail icon holds the app shell: navigation chrome, header, feedback, breakpoints and scale.Driving Navigation and Immersive header off-on-off on the Mobile tab, with the Live preview phone mock updating alongside, then reading the Common tab.
On a Mobile-target project, this is a two way Mobile / Common toggle, not three way. Re-checked live: the toggle here reads only Mobile and Common, and Common is the union of what used to be described as separate Web and Shared tabs — Branding, Feedback & Motion and Layout & Responsive all live there, scoped “Applies to the whole app.” A dedicated Web tab with navigation-chrome choices (Sidebar, Navbar, Drawer, and so on) was searched for and not found on this project. The most likely explanation is that tab only appears once a project’s own target (App Details → Project Type) is set to Web rather than Mobile — plausible, but not confirmed, since switching a project’s target is a bigger change than anything else made for this page. Read the Web subsection below as accurate for a Web-target project; it just is not what this project’s own toggle shows.
App Config is not App Settings. They are one icon apart in the CONFIG group and they hold different things. App Config is the app shell. App Settings is the app’s identity and packaging: names, package name, entry page, icon and splash, deep link scheme, languages.If you came looking for navigation type or breakpoints, you are in the right place. If you came looking for the app icon or the supported locales, see the App Settings page.
App Settings
App details, assets, deep linking and languages, in the pane one icon below this one.
Mobile

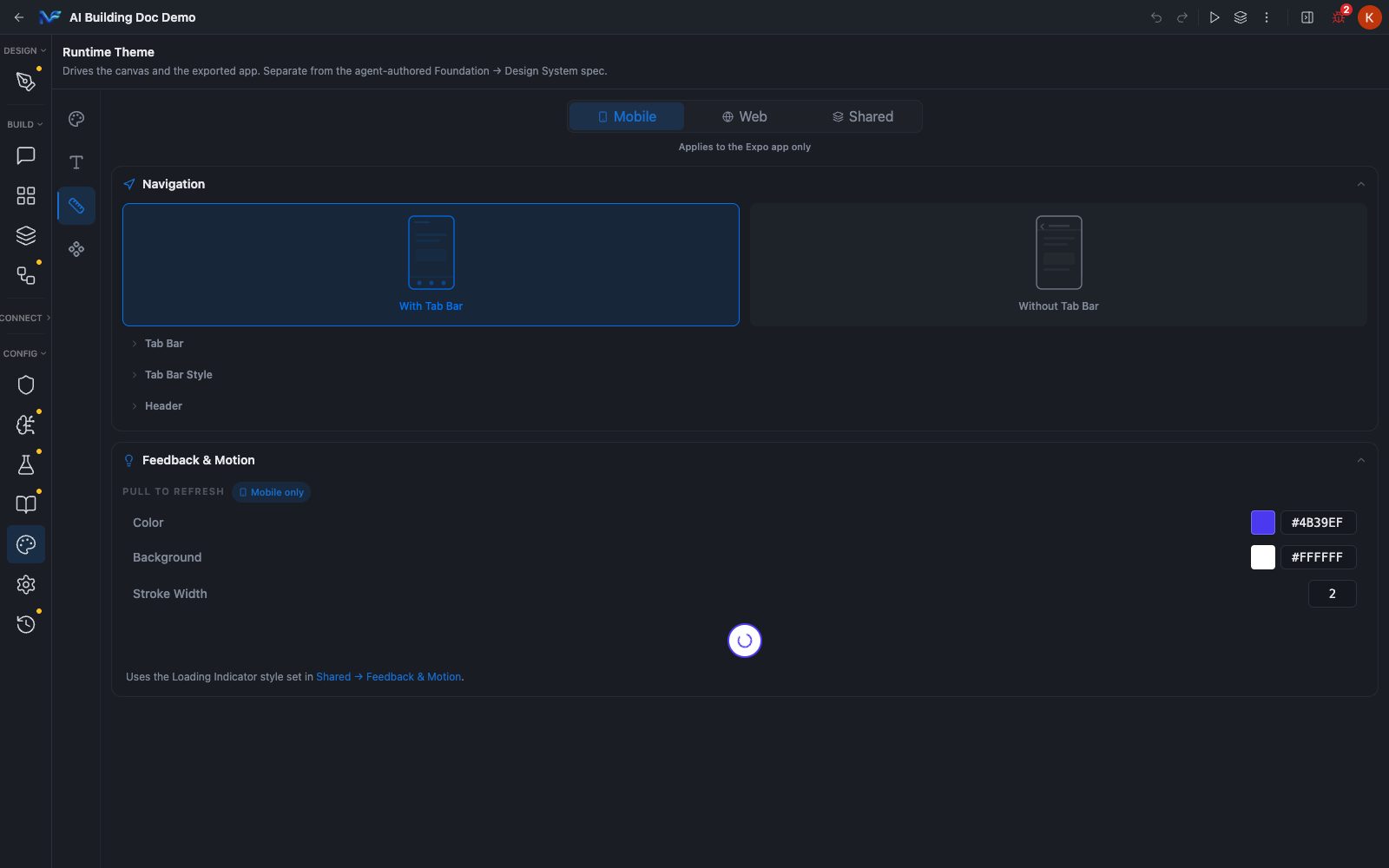

App Config on the Mobile tab: a Navigation card with the illustrated With Tab Bar and Without Tab Bar choices, collapsed Tab Bar, Tab Bar Style and Header sections, and a Feedback & Motion card
- Navigation: two illustrated, mutually exclusive choices, With Tab Bar and Without Tab Bar.
- Tab Bar: the list of tabs. An empty list shows a red “No tabs” marker and a + Add Tab button.
- Tab Bar Style: Background, Active, Inactive, Icon Size, Label Size and a Show Labels toggle.
- Header: the native header for every screen. Default header, Back button, Edge-to-edge, Immersive header, Title alignment, Status bar content, and a Header style block with background, title colour, icon colour and height. A phone mock labelled Live preview updates as you change them. The section notes that per screen overrides live on the page itself, under Page Settings → Header.
- Feedback & Motion: a PULL TO REFRESH section badged Mobile only, with colour, background, stroke width and a live spinner preview. It uses the loading indicator style set on the Shared tab.

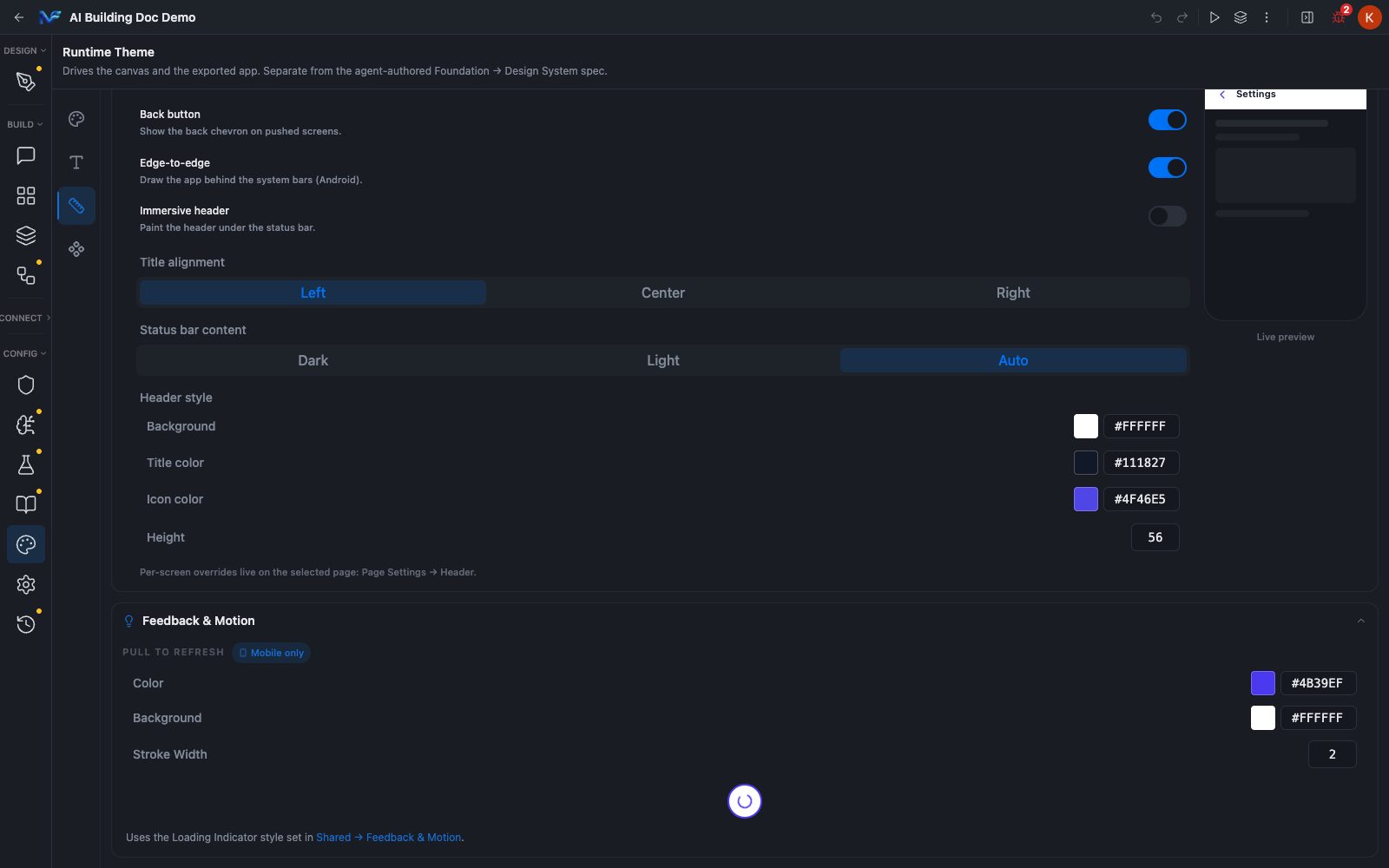

The Header section expanded: the four toggles, Title alignment and Status bar content segmented controls, header style colours and height, and the phone Live preview beside them
Web
Marked since it’s scoped to the Web target’s own chrome — but see the correction note above: this subsection describes a Web tab that wasn’t found on the Mobile-target project checked for this page, and is presumed to appear once a project’s target is set to Web.
- Navigation: five choices for the web chrome, Sidebar, Navbar, Navbar + Sidebar, Drawer and None.
- Navigation options: sidebar position, plus toggles for show labels, collapsible sidebar, top header and sticky header.
- Pages in web navigation: a drag to reorder list of the project’s real pages, each with an order number and a Visible toggle. Reordering applies to the web navigation immediately.
- Feedback & Motion: a SCROLLBAR block with thumb colour, thickness, radius, minimum thumb length, margins and three toggles, plus a live preview.

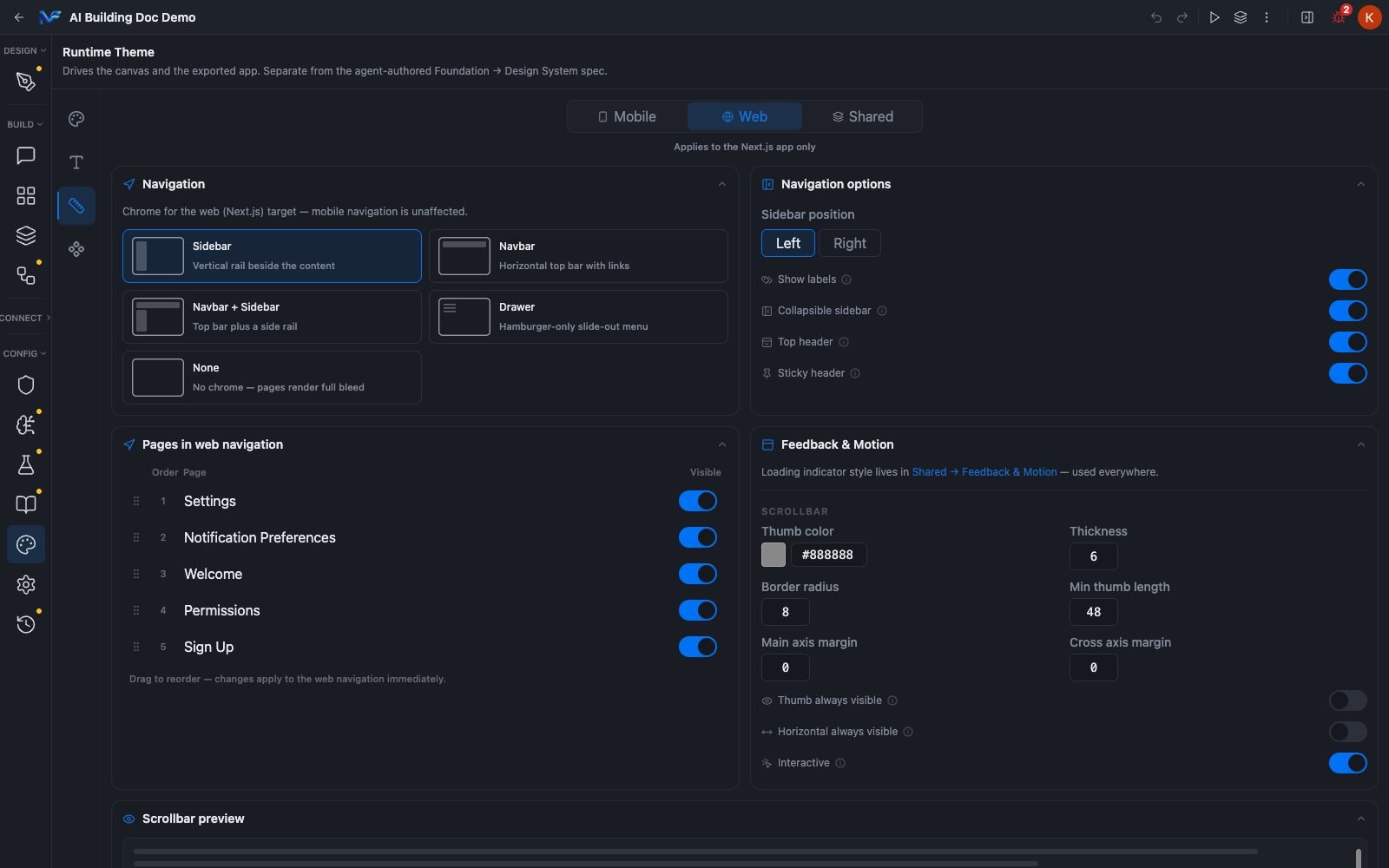

App Config on the Web tab: the five navigation chrome choices, the Navigation options card, the reorderable page list, and the scrollbar settings
Shared
- Branding: a single Brand name field.
- Feedback & Motion → LOADING INDICATOR: Type, Color as a token dropdown, and Size, with a live animated preview. This applies on both Mobile and Web.
- Layout & Responsive: background, foreground and active colours, then the project’s breakpoints as a four stop slider at 0, 479, 767 and 991, with Desktop having no upper bound.
- THEMED COMPONENT SCALE: two slider groups, each with a locked Mobile base of
1and adjustable Tablet and Desktop multipliers. Font scale drives typography styles. Theme scale drives themed components, covering type, spacing, radii and icons. Colours and behaviour never scale.

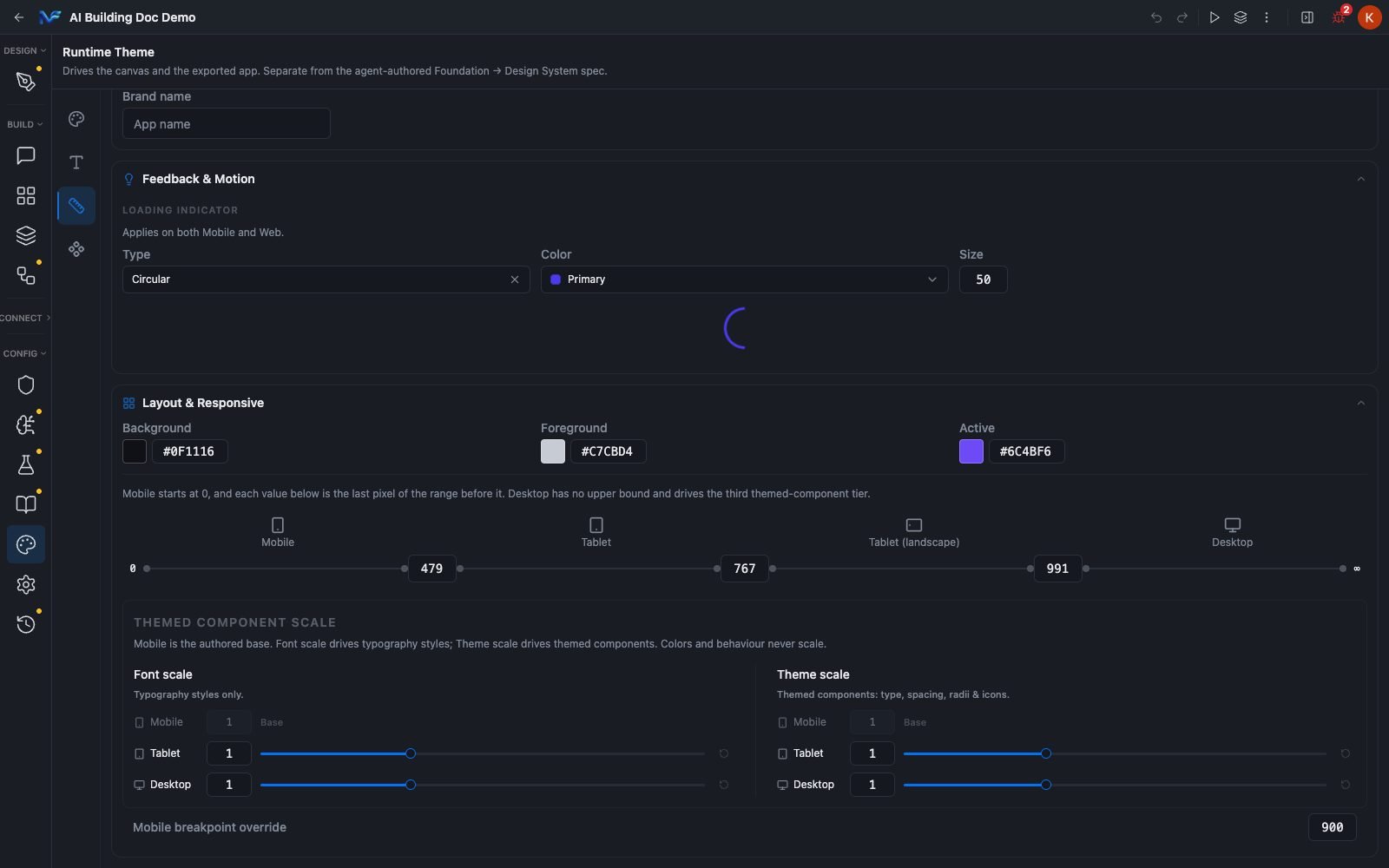

The Shared tab scrolled to Layout & Responsive: the four stop breakpoint slider and the Font scale and Theme scale sliders below it
These breakpoint numbers are not the same vocabulary as the per component Responsive Visibility bands, which are Phone under 600px, Tablet 600 to 900px and Large Tablet above 900px. The Preview panel’s three measured device sizes, 390, 768 and 1024, land one per Responsive Visibility band, but against these App Config bands they fall in Mobile, Tablet (landscape) and Desktop. The numbers are consistent. The labels are two different systems.
