A normal component is a plain, one off instance you place on a screen and configure right there. Add a Button, set its text and size, and you are done. Nothing is saved to a reusable list.That is the difference from a Themed Component, which is a named preset you save once and place many times. Most of a screen is normal components. Reach for a themed preset only when you want the same configured look in several places.By the end of this guide you will have opened the Component Tree, added components from the catalog, and configured each one’s own properties on the canvas.Prerequisites
A NativeFlow Studio project, open and loaded.
Normal edit access to the project. No other permissions are needed.
Adding and configuring five component types in one session, at automation speed.
The recording above is a real, unscripted session that adds and configures five component types back to back: Button with Text, Variant, Action and Size, Input with Placeholder, Default Value, Variant and Size, Card with Template Style, Variant, Size and Padding, Badge with Text, Variant, Action and Size, and Switch with Checked, Disabled, Size and Track Color. It runs at automation speed with no narration, and every action in it is real.
In the left sidebar, click the layers icon to open the Component Tree.The panel lists every page, and under the selected page every component already on the canvas, nested to match the real container structure.
2
Click the + on a container row
Container rows such as the root Page, a Box, a Row, a Column or a Card each show a + button. Click it to open the Add component popover.For a screen’s first components, use the root Page or Box row.
Only container rows render a +. A leaf type such as Button or Text cannot hold children, so it has no +. Add to the nearest container row instead.
3
Search the catalog and click the type you want
The popover has a Search components… box and the full catalog grouped by category: Typography, Layout, Forms, Data Display and more. Type part of the name and click the exact match.

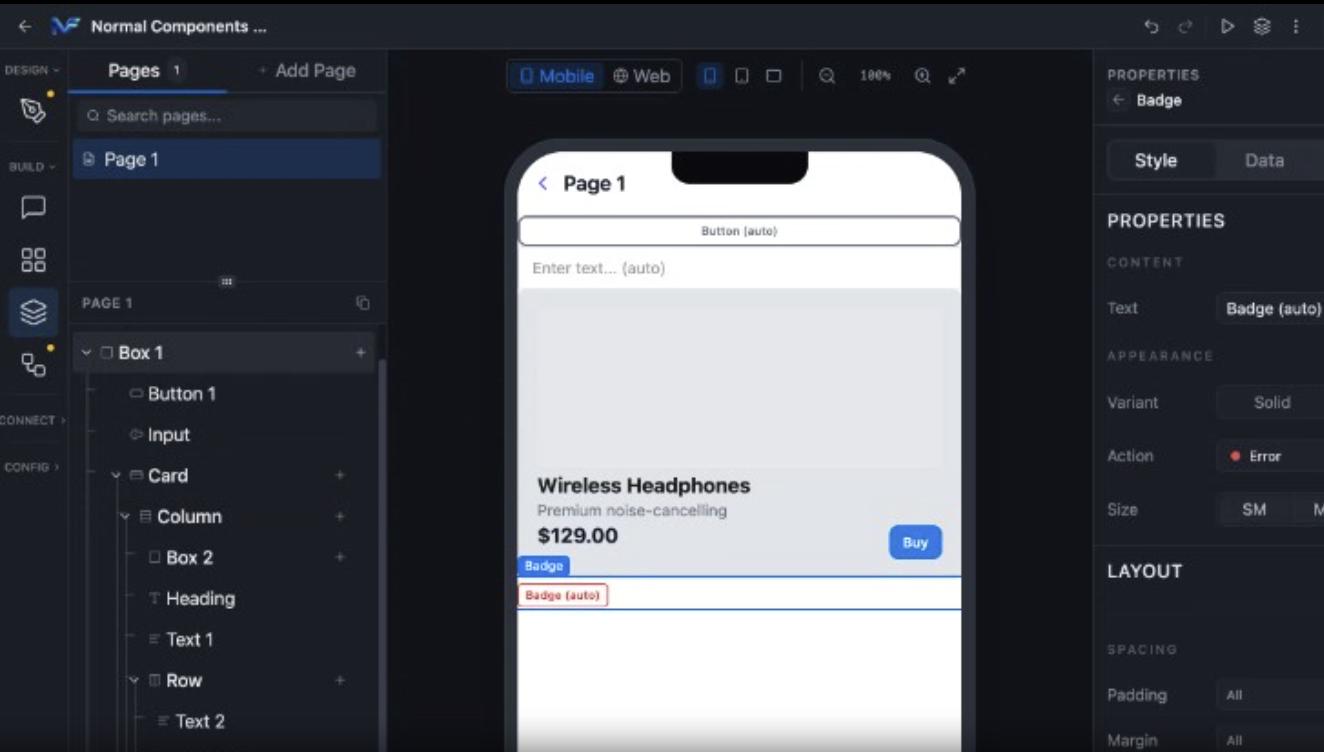

The Component Tree with Button and Input already added, the Card template in place, and the Add component popover open with a search for Badge
The new component lands on the canvas and is selected automatically. The Properties panel on the right switches to its fields.
If the search finds nothing, you probably typed a partial or misspelled name. Clear the search and browse the category instead.
With the component selected, the Properties panel on the right shows two tabs:
Style: the component’s own fields, such as a Button’s Text, Variant, Action and Size, plus the universal Style and Layout sections that every type shares.
Data: the binding fields for that component.
Change any field and the canvas updates immediately. There is no separate apply step.

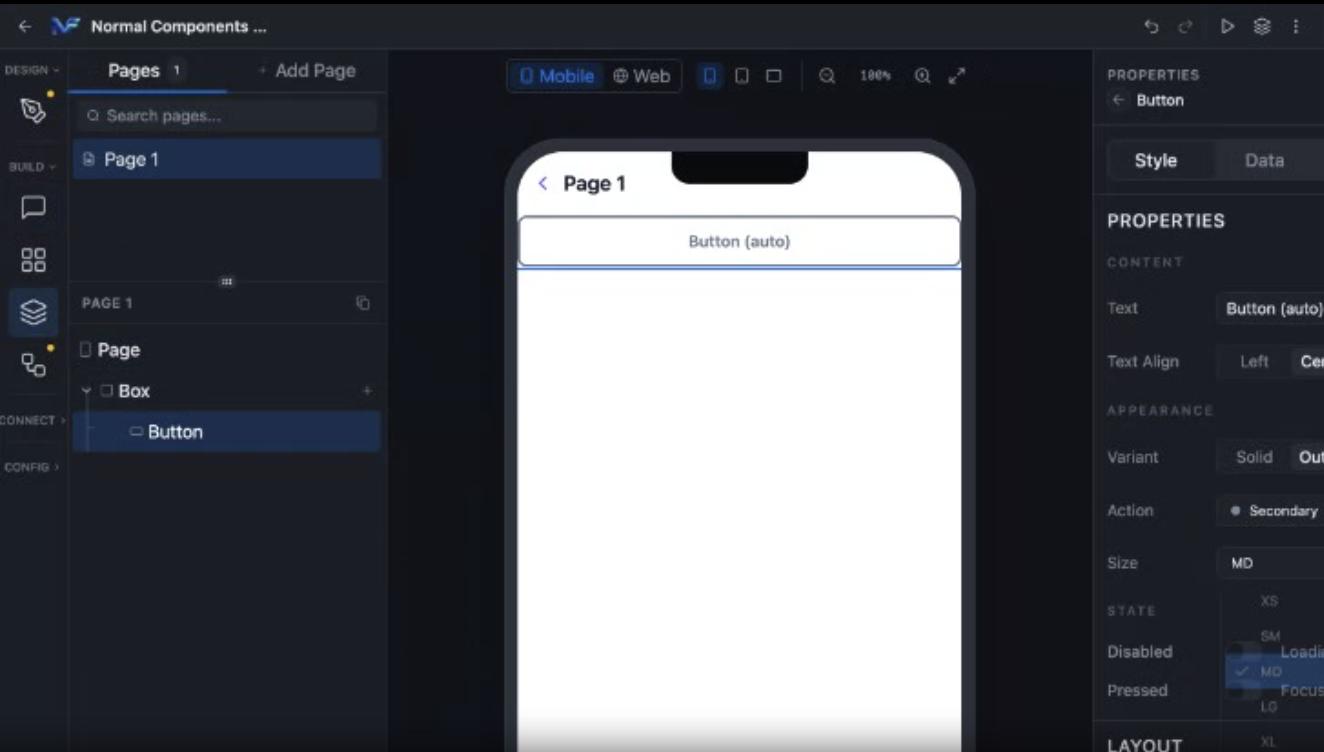

A Button selected on the canvas with the Size dropdown open, showing XS, SM, MD, LG and XL

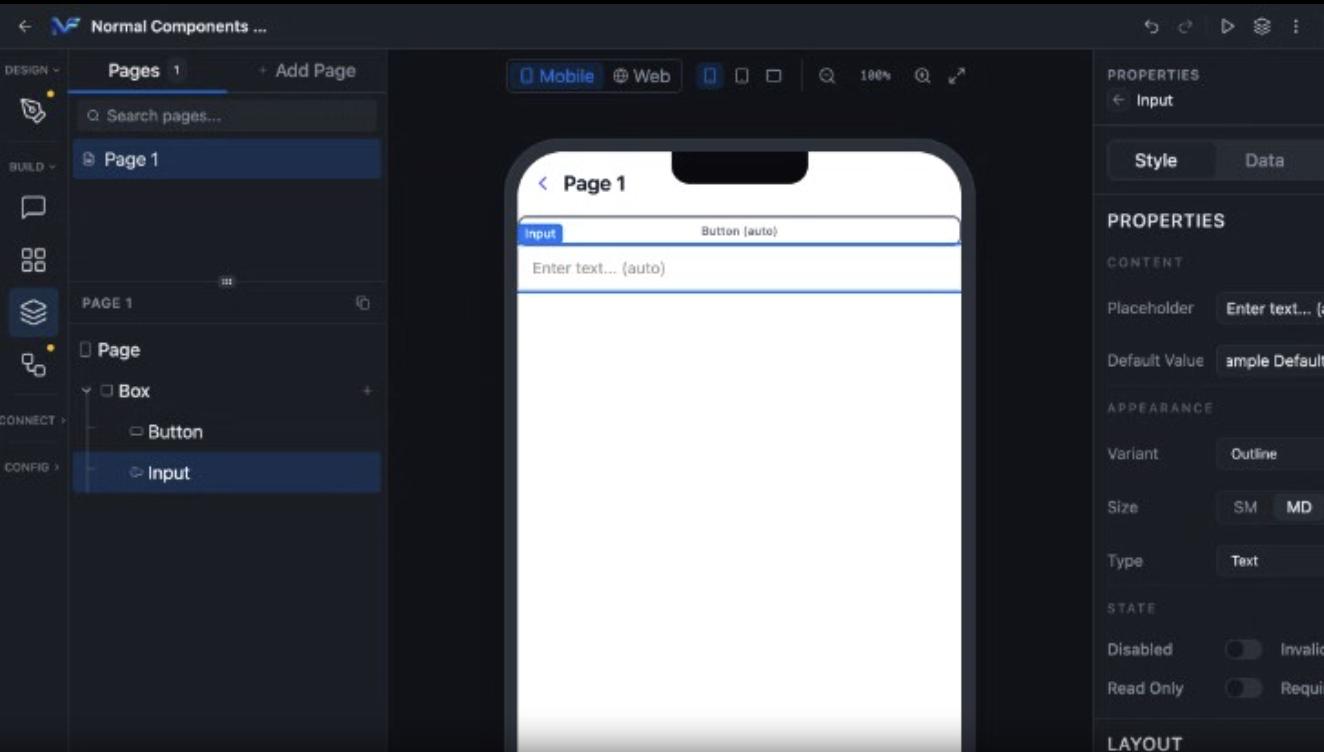

An Input selected with Placeholder, Default Value, Variant and Size all set
Autosave is debounced, not instant. If a change does not seem to stick, wait for the header indicator to move from “Saving…” to “Saved” before you close the tab.
The Style and Layout panel on a normal component is the same one the Themed Components editor uses. Themed against normal changes where the configuration is saved and reused, not which properties exist.
Some types do not start empty. Card exposes a Template Style property with options including Product Card, Profile Card and Stat Card. Picking one auto builds a real nested structure underneath it.Choosing the product template built Card > Column > Box > Heading > Text > Row > Text, rendering a “Wireless Headphones / $129.00 / Buy” layout. That is genuine canvas content, not a placeholder image, and every nested piece is itself a normal component you can select and configure on its own.
Every component you add is independent. Configuring one never affects another. Add as many as the screen needs, each with its own properties.

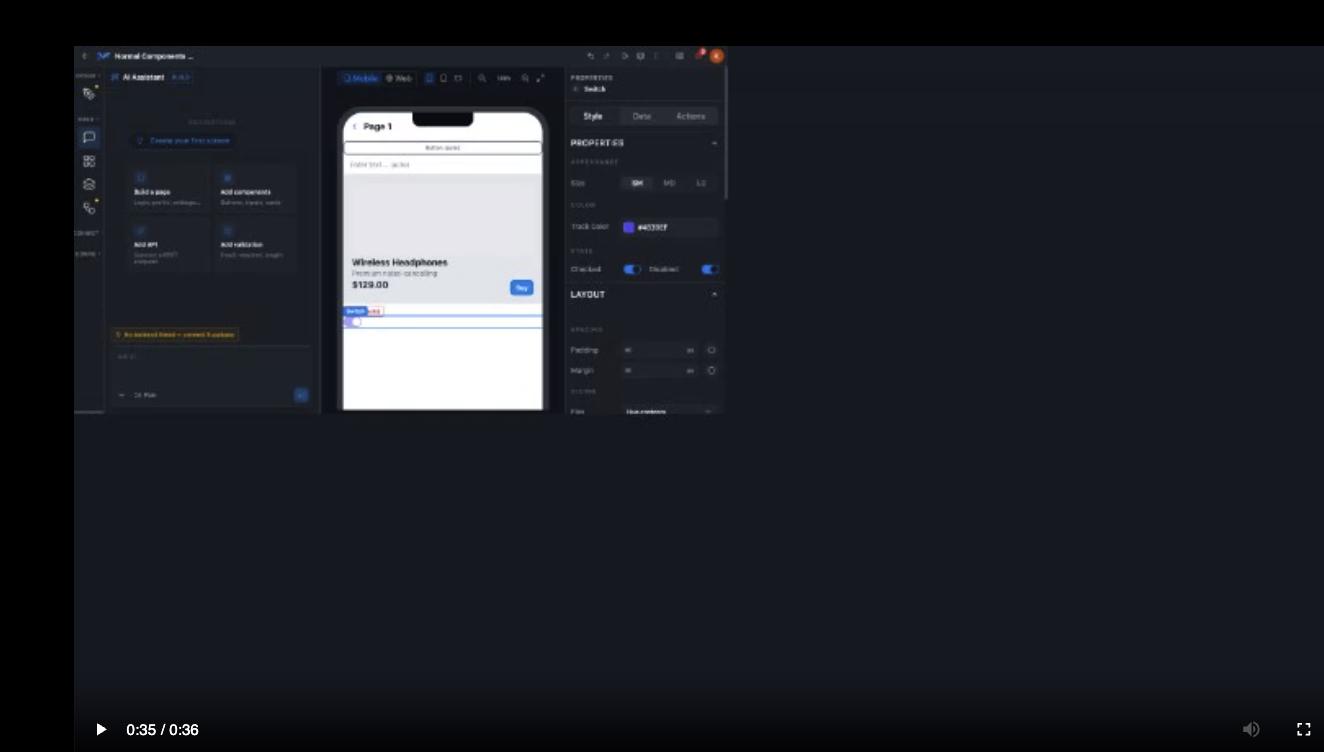

The finished canvas with a Switch selected and configured for Track Color, Checked and Disabled, above it the Card's product layout and the earlier Button, Input and Badge
A brand new project’s changes can seem to vanish shortly after you create it. This is a known Studio persistence gap for very recently created projects. Give a fresh project a few moments, and check the header’s “Saving…” then “Saved” indicator, before you navigate away.
