Authentication is where you decide whether your app has users at all: where their identities live, how they sign in, which screens a signed out person cannot reach, and what roles mean in your app.It is a wizard, several steps long, ending in Finish. The wizard does not apply as you go — the Finish setup button applies everything at once, creates the missing auth screens, and then replaces the pane with a summary card.By the end of this guide you will know what each step asks for, which of the four identity backends fits you, and what Finish will actually build.
The step count has been observed to change. Most of this guide was written against a 6-step wizard (Connect, Sign-in, Screens, Validate, Protect, Finish). A later check found it back at 7 steps — Connect, Sign-in, Biometric, Screens, Validate, Access, Finish — only three days after the 6-step version was seen. Only Connect and Sign-in, covered below, have been confirmed against that later 7-step version; treat anything about Screens, Validate, Protect/Access or Finish as possibly stale until it’s re-checked.
Prerequisites
A Studio project.
An account with one of four identity backends, plus its credentials: Supabase, Auth0, WorkOS, or your own service behind a Custom JWT contract. Getting those is work you do in that provider’s console, not in Studio.
Nothing else to read the wizard. You can click through every step and open all four Advanced panels before you commit to anything.
You will find this under CONFIG → Security (the shield icon in the left rail). The tooltip says Security; every surface inside it is titled Authentication. It is not in App Settings.
Turning on the master toggle, the Connect step's real fields, the Backend dropdown, and Sign-in's Email and password fields — stopped deliberately before Finish setup.
The recording above is a real, unscripted session, and deliberately partial: it covers only Connect and Sign-in, never types a credential, and never reaches Finish setup. It runs at automation speed with no narration, and every toggle it flips is flipped back by the end.
Expand CONFIG in the left rail and click the shield icon. The pane opens on step 1, Connect, with a status chip reading Step 1 of 6 (or 7 — see the note above), Auth off and a card reading:
Authentication is off
The app is fully public. Turn on authentication using the toggle above to configure an identity provider.
Flip the master Authentication toggle in the top right, or click Turn on authentication in the card. Until you do, Back and Next are both greyed out and the footer reads Turn on authentication to continue.

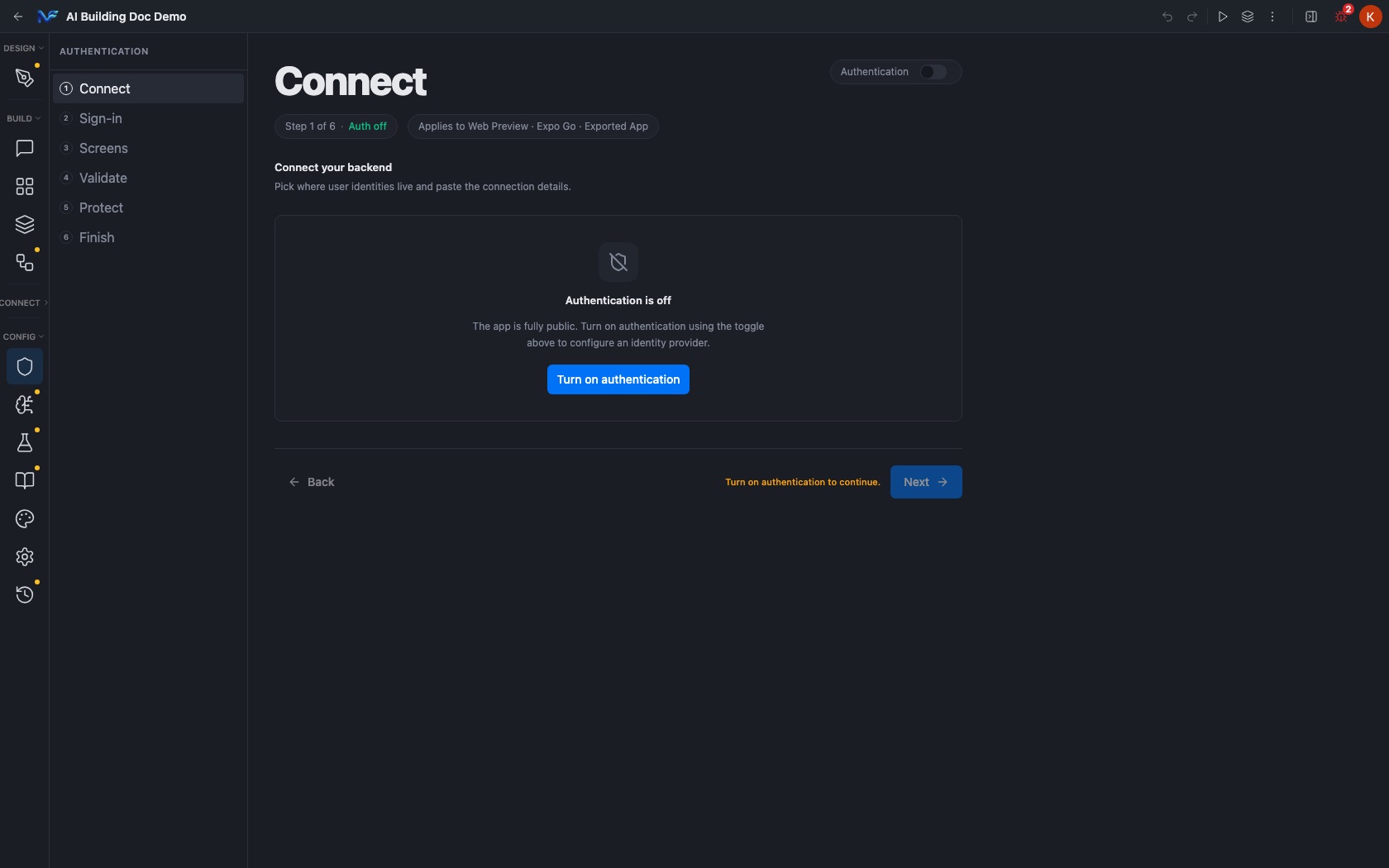

The Authentication pane with auth off: the six step list on the left, the status chip, and the Authentication is off card
The step list on the left stays clickable even while Next is disabled. Click any step name to jump straight to it. That is how you read the whole wizard before committing to anything.
2
Step 1: connect an identity backend
Step 1 shows the Identity backend card: Where user identities are managed and how the app reaches them. The Backend dropdown offers exactly four options.
Backend
Fields it asks for
Supabase(default)
Project URL (https://xxxx.supabase.co), Publishable Key (eyJhbGciOi...), and an optional masked Supabase Management API token (sbp_...)
Auth0
Domain (your-tenant.us.auth0.com), Client ID, Redirect URI (auto generated as nativeflow://auth/callback), Scopes (comma-joined) (openid,profile,email,offline_access), Roles Claim Path (https://your-app/roles)
WorkOS
API Key (sk_...), Client ID, optional Organization ID

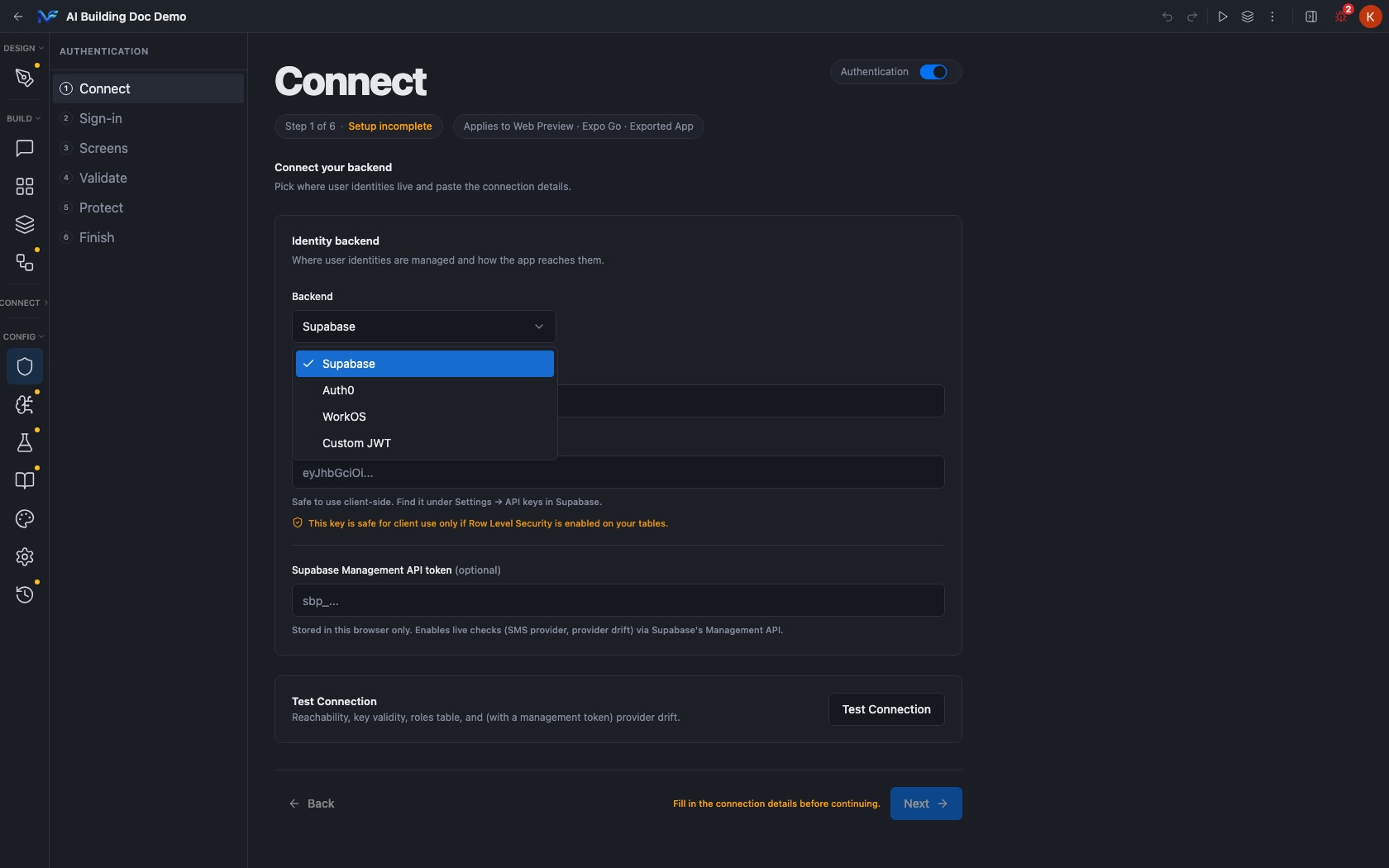

The Backend dropdown open, listing Supabase, Auth0, WorkOS and Custom JWT
Two pieces of Studio’s own guidance are worth repeating. Under the Supabase Publishable Key: Safe to use client-side. Find it under Settings, API keys in Supabase, and This key is safe for client use only if Row Level Security is enabled on your tables. Under the Management API token: Stored in this browser only. Enables live checks (SMS provider, provider drift) via Supabase’s Management API.Below the fields sits Test Connection, described as checking reachability, key validity, roles table, and (with a management token) provider drift.
Changing backend is guarded. Picking a different one raises a Change identity provider? dialog first: Switching providers clears the current provider configuration. Roles, permissions, and access rules are preserved, but you will need to re-enter provider credentials.
Next stays disabled with the footer message Fill in the connection details before continuing until this step is complete.
3
Step 2: choose sign-in methods
Step 2 is headed How people sign in, with the note Turn on the methods you want. Email and password works with no extra setup. A counter chip tracks how many are on. Only the methods your backend supports are listed, and a row reveals its fields only once its toggle is on.On Supabase, five methods are offered.
Method
What it needs
Email and password
Nothing external. Exposes MINIMUM PASSWORD LENGTH (default 6, shorter values are rejected by the backend) and Require email confirmation before first sign-in, on by default
Google OAuth
CLIENT ID and a masked CLIENT SECRET, created in Google’s own console, plus three redirect URIs to register for WEB PREVIEW, EXPO GO and EXPORTED APP
Phone and OTP
An SMS PROVIDER and its credentials. For Twilio: ACCOUNT SID, masked AUTH TOKEN, MESSAGE SERVICE SID
Magic link
No credentials, but it uses your project’s existing email setup. Studio warns that the default shared mailer is rate limited and links a Custom SMTP setup guide
Apple sign-in
SERVICES ID (CLIENT ID) and CLIENT SECRET GENERATED ON, which is a date field, not a secret field
Five SMS providers are offered: Twilio, Twilio Verify, MessageBird, Vonage, TextLocal (community).

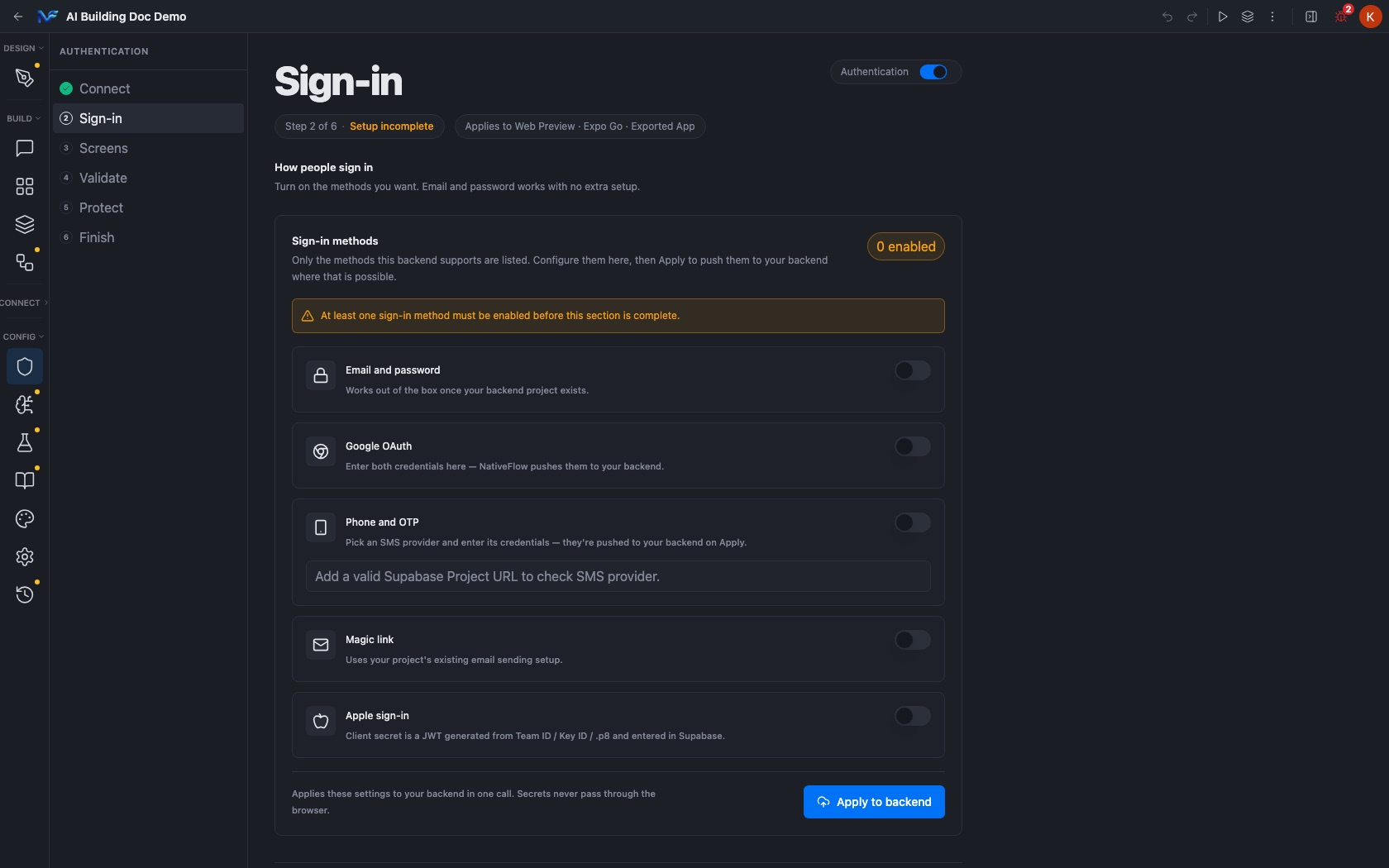

Step 2 with all five sign-in methods listed and collapsed
Apple is the one method whose secret does not live in Studio. You generate the JWT from your Team ID, Key ID and .p8 file and enter it in Supabase. Studio only records the date you did it, so it can warn you before Apple’s six month cap expires. It warns at 30 days.
Under the list sits Apply to backend: Applies these settings to your backend in one call. Secrets never pass through the browser.Next unlocks as soon as one method is on. Until then the footer reads Enable at least one sign-in method.
4
Step 3: review the auth screens
Step 3 is headed Auth screens. Your existing pages get wired up; anything missing gets created. This is the step that tells you what Finish setup will actually build.With email and password on, in a five page project, it reported:
Reusing your Sign Up page. Its fields and button get wired to sign-up. Matched by page name.
Creating Sign In. Fields: Email, Password. Button Sign in. Also links to: Forgot password?, New here? Create account.
Creating Confirm Email. No input fields. Also links to: Resend email.
Creating Forgot Password. Fields: Email. Button Send reset link. Also links to: Back to sign in.
Creating Check Email. No input fields. Also links to: Resend link.
After a successful sign-in the app opens Settings.
Below that sits a live Auth screens preview with tabs for Sign in, Sign up and Forgot password, rendering a wireframe of each flow with labelled states such as ENTRY POINT, SESSION CHECK, an error state and Signed in. These screens update as you change the configuration above.

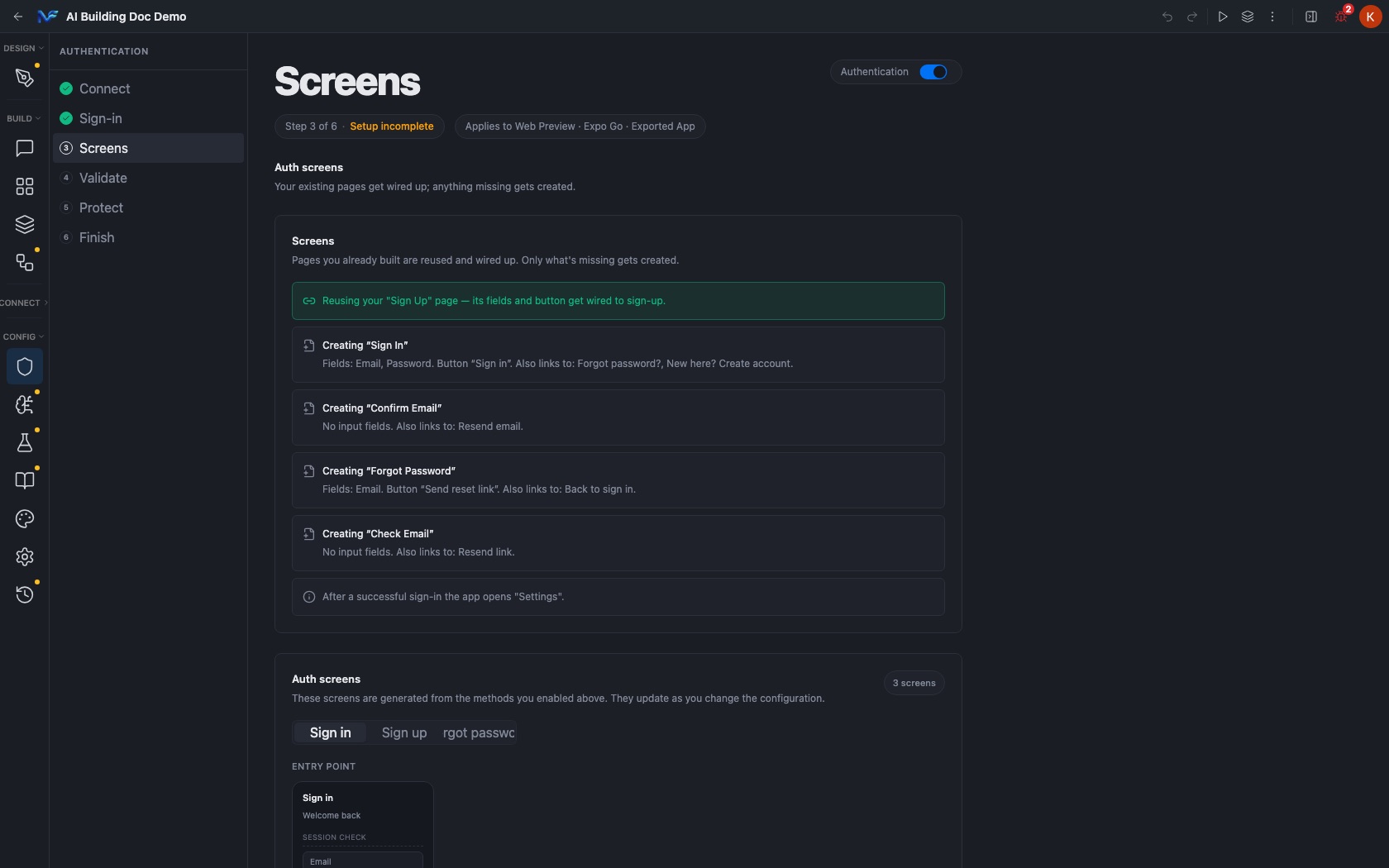

Step 3 with one sign-in method on: a green reuse row for Sign Up and four Creating rows
5
Step 4: check field validation
Step 4 sets what each field must contain before the sign-in or sign-up button runs, on the web preview, Expo Go and the exported app. Sensible rules are already set, and Studio tells you to edit them only if your backend expects something different.Defaults generated for an email and password setup:
Screen
Field
Rules
Sign In
Email
Required, message This field is required. Email Format, message Please enter a valid email address
Sign In
Password
Required
Forgot Password
Email
Required, Email Format
Each field carries a VALIDATION RULES count badge, a per rule toggle, and an Add Validation Rule button.
6
Step 5: protect pages
Step 5 asks you to choose which pages a signed-out user cannot reach, and adds Unchecked pages stay public. You can change any of this later under Advanced.Every page outside the auth flow is listed with a checkbox, all checked by default, each labelled Requires sign-in. Bulk All and None buttons sit above the list. A page that step 3 claimed for the auth flow, such as a matched Sign Up page, does not appear here.

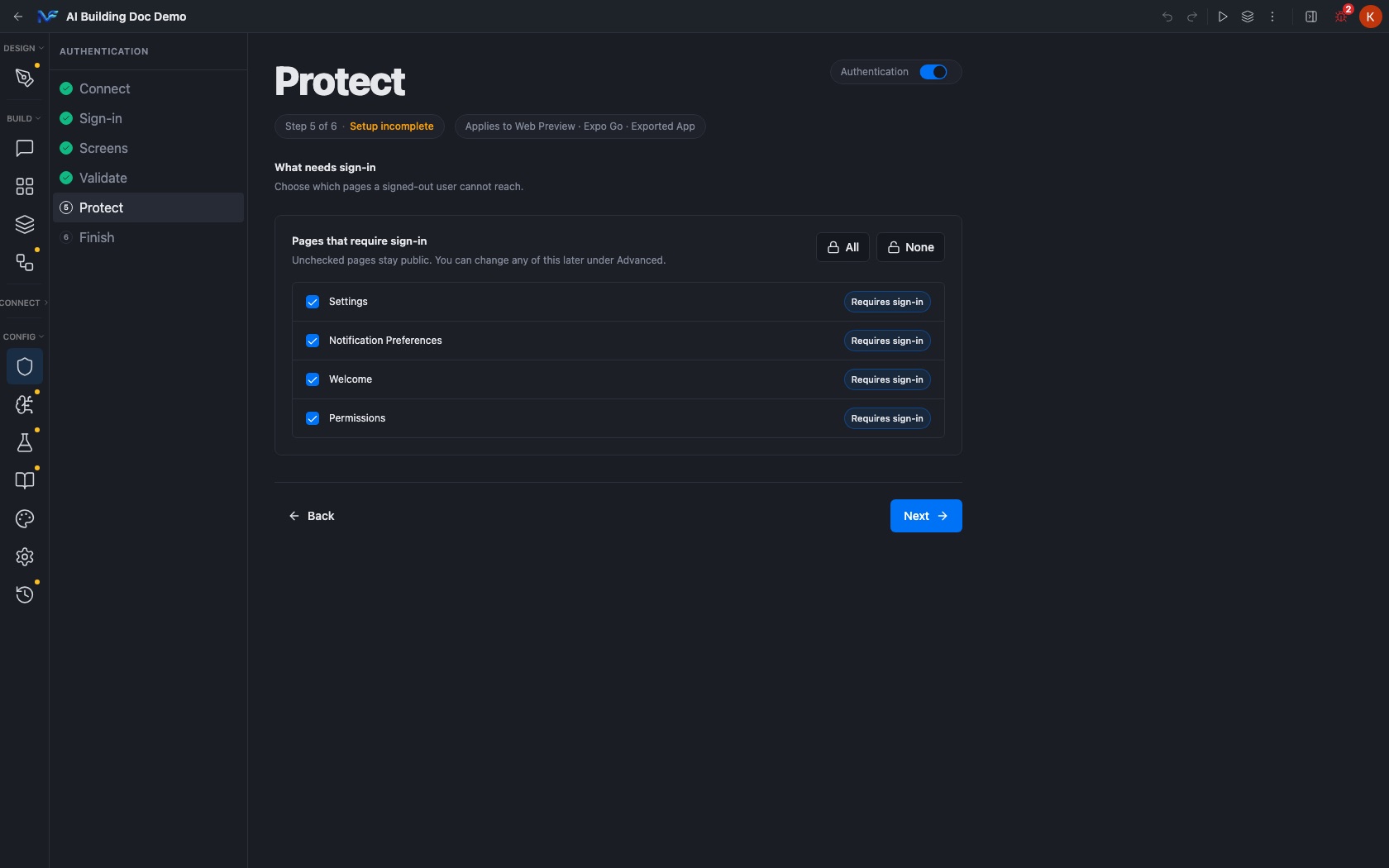

Step 5 with four pages listed, each checked and labelled Requires sign-in
7
Step 6: finish setup
Step 6 is headed Review and finish. One step applies everything. Advanced settings are optional.The Ready to set up card summarises the whole configuration: the identity provider, how many sign-in methods are enabled, how many existing pages get wired up and how many new pages get created, how many pages will require sign-in, which page signing in opens, and the names of the new pages.

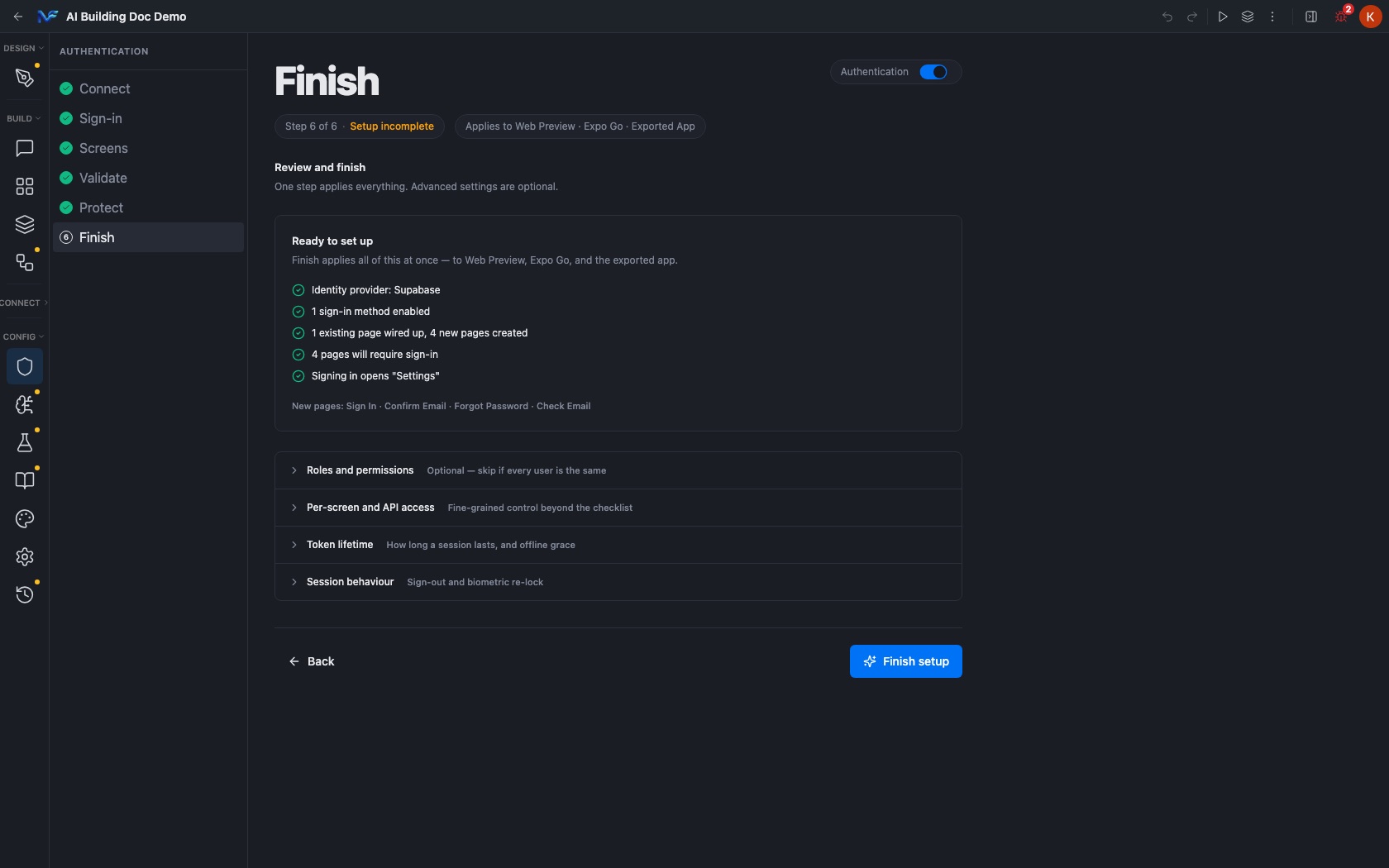

Step 6 with a populated summary above the four collapsible Advanced panels
Finish setup creates pages in your project and applies everything at once, to Web Preview, Expo Go and the exported app. The only way back is Start over, which deletes the generated screens again. Read the next section before you press it.
Optional, skip if every user is the same. Four numbered sections:
Section
Name
What is in it
0
Data source
Roles table (placeholder user_roles) and Roles column (placeholder role). Shown because your provider is Supabase. Studio warns Typos aren’t caught here, use Test Connection on the Provider tab to verify the table exists
1
Permissions
Fine grained capabilities checked at runtime, for example invoice.approve. A text field plus Add
2
Roles
Named bundles of permissions. A text field plus Add role. Each saved role renders its permissions as toggle chips
3
Provider role mapping
Maps a raw provider value to one of your roles. Add row is disabled until at least one role exists
The Provider tab in section 0’s warning means the wizard’s step 1, Connect. The product uses two names for the same place.
Fine-grained control beyond the checklist. A table with columns TARGET, ACCESS, ROLES and CURRENT, plus bulk Set all to Authenticated and Set all to Public buttons. Each row’s ACCESS dropdown offers three levels: Public, Authenticated, Role-restricted.
When the user signs out of the app, also invalidate their session at the identity provider, so a second sign-in requires fresh credentials. Applies where the provider supports it
Once setup has run, the master Authentication toggle is disabled and Start over is the only way back. Hovering the toggle shows the title Start over to turn authentication off.Start over deletes the generated auth screens, removes sign-in requirements from every page, and turns authentication off. Its confirmation dialog says so plainly: The generated auth screens are deleted, every page stops requiring sign-in, and authentication is turned off. Pages you designed yourself are kept, but the sign-in and sign-up buttons on them stop working until you set up again. This cannot be undone.
Nothing persists until the provider connection is valid. Adding a role or permission without a Project URL raises a red toast: Security config invalid, Project URL is required for supabase.Until the connection is valid, a full page reload discards the lot: authentication on, the selected backend, the enabled sign-in method, the Protect selections, permissions, roles, mapping rows, and an applied setup state. The pane comes back at Step 1, Auth off — confirmed directly: turning the toggle on, switching backends, and enabling a sign-in method during this guide’s own video recording all reverted on the next fresh page load, with no manual cleanup needed.Do step 1 first, properly, and only then the rest. Treat the wizard as unsaved until the connection is real.
Once sign-in exists, you trigger it from a page or component with an action. Exactly seven Authentication actions exist:Sign In, Sign Up, Sign Out, Send OTP Code, Verify OTP Code, Send Magic Link, Send Password Reset.Every one of them carries On Success and On Error branches, and every one opens and is fully configurable with no provider connected. Their parameters are tabulated in the action reference.
Email confirmation is handled by the generated Confirm Email screen and by the Require email confirmation before first sign-in toggle, not by an action you wire yourself.
